Expansion Valve: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Using the refrigerant recovery system, discharge refrigerant. Ref. to AIR CONDITIONER (EXCEPT FOR HEV)>REFRIGERANT RECOVERY PROCEDURE>PROCEDURE .
  2. Move the air intake boot. Ref. to INTAKE (INDUCTION) (H4DO (EXCEPT FOR HEV))>AIR INTAKE BOOT>REMOVAL .
    NOTE: With the PCV hose connected, remove the air intake boot from the air cleaner case (rear) and throttle body.

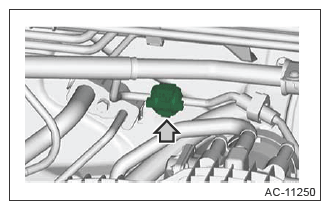

  3. Disconnect the hose - pressure suction.
    CAUTION:
    • Do not apply excessive force to the hose.
    • Seal the engaging parts of the disconnected hose, pipe and expansion valve - cooling with a plug or vinyl tape to prevent foreign matter from entering.
    1. Disconnect the quick connector.

      Preparation tool:

      ST1: SP TL REMOVER PD (73499XA00A)

      G13605024Courtesy of SUBARU OF AMERICA, INC.
      1. Face collar side (A) of the quick connector (1) to the remover (2), and set lock part (B) on the stopper side (C) of the remover.
        G13200530Courtesy of SUBARU OF AMERICA, INC.
      2. Insert the remover.
        NOTE: Do not bend the needle (4) in the remover.
        G13200532Courtesy of SUBARU OF AMERICA, INC.
        G13200531Courtesy of SUBARU OF AMERICA, INC.
      3. With the pipe secured, press the label part (D) of the remover with a thumb. Connector is unlocked and the quick connector opens.
        G13200533Courtesy of SUBARU OF AMERICA, INC.
        G13200534Courtesy of SUBARU OF AMERICA, INC.
      4. Pull the remover (2) and separate the pipe (3) from the quick connector (1).
        G13200535Courtesy of SUBARU OF AMERICA, INC.
      5. Pull up the stopper (C) and remove the remover (2) and quick connector (1) from the pipe.
        G13200536Courtesy of SUBARU OF AMERICA, INC.
      6. Remove the quick connector (1) from the remover (2).
        G13200537Courtesy of SUBARU OF AMERICA, INC.

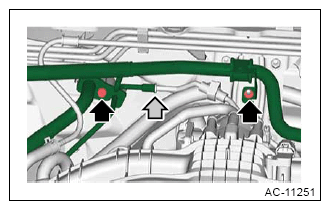

    2. Remove the bolts and nuts, and detach the hose - pressure suction.
      G13605033Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the expansion valve - cooling.

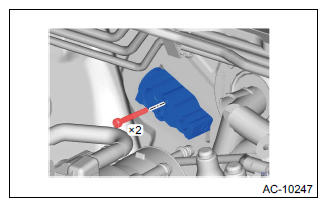

    1. Remove the bolt, and remove the expansion valve - cooling.
      CAUTION: Seal the engaging parts of the pipe and expansion valve - cooling with a plug or vinyl tape to prevent foreign matter from entering.

      Preparation tool:

      Hexagon wrench: 4 mm (0.16 in)

G11245688Courtesy of SUBARU OF AMERICA, INC.
