Manual A/C Model

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the grille assembly - CTR ventilation, Ref. to AIR CONDITIONER (EXCEPT FOR HEV)>AIR VENT GRILLE>REMOVAL>CENTER GRILLE ASSEMBLY .
  3. Remove the audio assembly or navigation assembly. Ref. to ENTERTAINMENT & MONITORING>AUDIO>REMOVAL .
  4. Remove the pocket assembly and the back panel - pocket. Ref. to EXTERIOR/INTERIOR TRIM>GLOVE BOX>REMOVAL .
  5. Remove the heater control assembly.

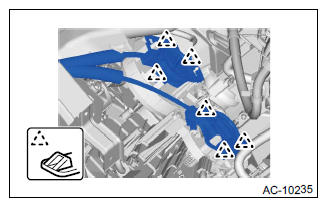

    1. Release the claw, and disconnect the cable - mode and the cable - temperature.
      CAUTION: Check the dial position before disconnecting the cable.
      G11245661Courtesy of SUBARU OF AMERICA, INC.
    2. Disconnect the connector.

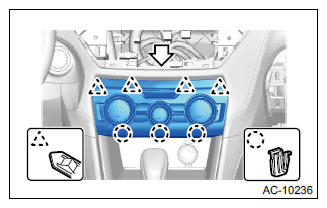

    3. Press the heater control assembly from behind to release the clips and claws, and then remove the heater control assembly.
      G11245662Courtesy of SUBARU OF AMERICA, INC.

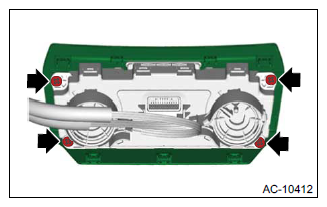

    4. Remove the screws and remove the panel assembly - heater.
      G11245663Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the cable - mode and the cable - temperature.

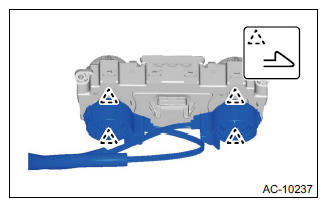

    1. Release the claw, and disconnect the cable - mode and the cable - temperature.
      G11245664Courtesy of SUBARU OF AMERICA, INC.
