Auto A/C Model

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the grille assembly - CTR ventilation. Ref. to AIR CONDITIONER (EXCEPT FOR HEV)>AIR VENT GRILLE>REMOVAL>CENTER GRILLE ASSEMBLY .
  3. Remove the audio assembly or navigation assembly. Ref. to ENTERTAINMENT & MONITORING>AUDIO> REMOVAL .
  4. Remove the heater control assembly.
    1. Disconnect the connector.
    2. Press the heater control assembly from behind to release the clips and claws, and then remove the heater control assembly.
      G11245665Courtesy of SUBARU OF AMERICA, INC.
    3. Remove the screws and remove the panel assembly - heater.

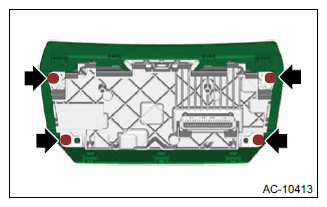

      G11245666Courtesy of SUBARU OF AMERICA, INC.
