Auto A/C Model

WARNING: This page is about a different variant/trim than selected.
  1. Using the refrigerant recovery system, discharge refrigerant. Ref. to AIR CONDITIONER (EXCEPT FOR HEV)>REFRIGERANT RECOVERY PROCEDURE>PROCEDURE .
  2. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  3. Remove the V-belts. Ref. to MECHANICAL (H4DO (EXCEPT FOR HEV))>V-BELT>REMOVAL .

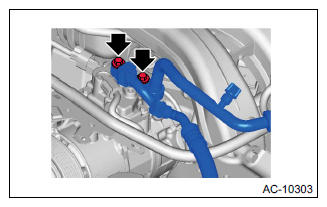

  4. Disconnect the hose - pressure discharge and the hose - pressure suction.
    1. Remove the bolts and remove the hose - pressure discharge.
    2. Remove the bolts and detach the hose - pressure suction.
      CAUTION: Seal the disconnected hose and engaging part of compressor with a plug or vinyl tape to prevent foreign matter from entering.
      G11245673Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the compressor assembly.

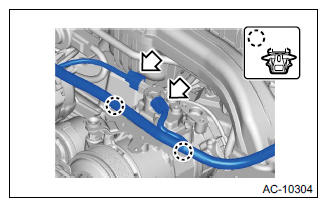

    1. Remove the harness clip and connector.
      G11245674Courtesy of SUBARU OF AMERICA, INC.

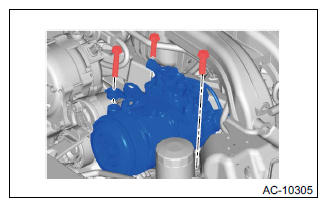

    2. Remove the bolts and remove the compressor assembly.
      G11245675Courtesy of SUBARU OF AMERICA, INC.

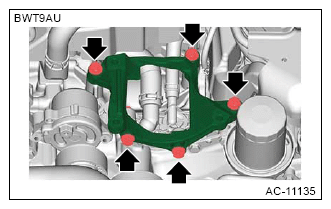

  6. Remove the bracket - air conditioner.
    1. Remove the bolts and remove the bracket - air conditioner.
      G13605013Courtesy of SUBARU OF AMERICA, INC.
