Ambient Sensor: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
    NOTE: For the hybrid model, disconnect the battery negative terminal.
  2. Lift up the vehicle.
  3. Remove the under cover - front, Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER> REMOVAL .

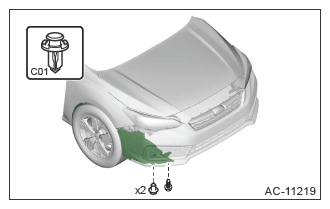

  4. Remove the screw and clips, and turn over the mud guard - front.
    G13605052Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the ambient sensor.
    1. Disconnect the connector.
    2. Release the claws and remove the ambient sensor.
      G13234195Courtesy of SUBARU OF AMERICA, INC.
