Side Grille Assembly

WARNING: This page is about a different variant/trim than selected.
  1. Remove the grille assembly - ventilation.
    1. Attach the protective tape (a).
    2. Release the claws and clips, then detach the grille assembly - ventilation.
      CAUTION: Wrap a remover, etc. with protective tape or cloth. Insert a remover, etc. from inside the grille ventilation side. Be careful not to damage the grille ventilation side.

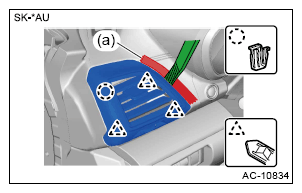

      • Driver's side
        G13234219Courtesy of SUBARU OF AMERICA, INC.

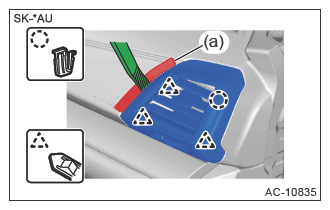

      • Passenger's side
        G13226208Courtesy of SUBARU OF AMERICA, INC.
