2.0 L Model

WARNING: This page is about a different variant/trim than selected.
  1. Connect the vacuum hose to the purge control solenoid valve.

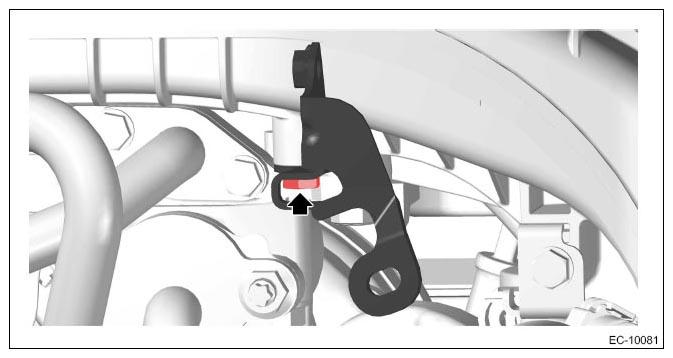

  2. Install the purge control solenoid valve bracket.

    Tightening torque:

    12 N.m (1.2 kgf-m, 8.9 ft-lb)

    G11253035Courtesy of SUBARU OF AMERICA, INC.
  3. Install the purge control solenoid valve.

    Tightening torque:

    6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

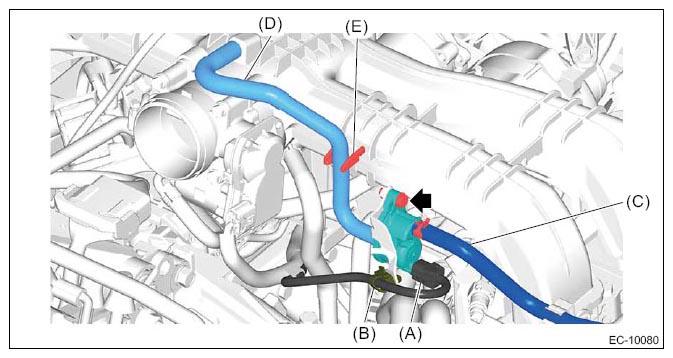

  4. Connect the vacuum hose (D) to the intake manifold assembly, and install the vacuum hose (D) to the clip (E).
  5. Connect the evaporation hose (C).
  6. Connect the clip (B) which secures the engine wiring harness to the purge control solenoid valve bracket, and connect the connector (A).
    G11253034Courtesy of SUBARU OF AMERICA, INC.
  7. Install the air intake boot. Ref. to INTAKE (INDUCTION) (H4DO (EXCEPT FOR HEV))>AIR INTAKE BOOT>INSTALLATION .
  8. Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
