On The Vehicle Inspection

WARNING: This page is about a different variant/trim than selected.

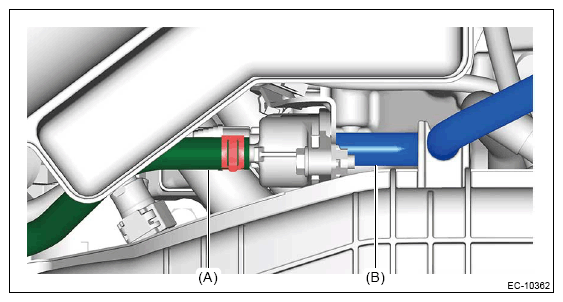

Disconnect evaporation hose (A) and vacuum hose (B).

Courtesy of SUBARU OF AMERICA, INC.

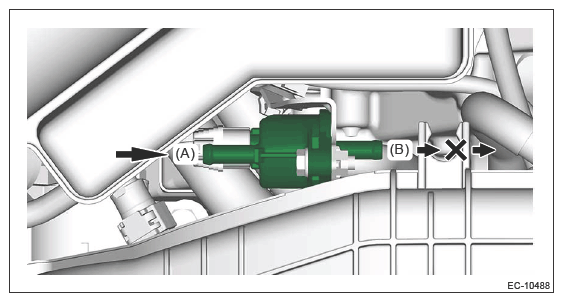

Check that air does not come out from (B) when air is blown into (A).

Courtesy of SUBARU OF AMERICA, INC.
Connect the Subaru Select Monitor to the vehicle.
Turn the ignition switch to ON. (Engine OFF)
Perform "CPC Solenoid" in "Active Test".
NOTE: Turn ON and OFF the purge control solenoid valve repeatedly during the active test.

2.0 L model:

Ref. to ENGINE (DIAGNOSTICS) (H4DO 2.0 (EXCEPT FOR HEV))>ACTIVE TEST .

2.5 L model:

Ref. to ENGINE (DIAGNOSTICS) (H4DO 2.5)>ACTIVE TEST .
Check that air comes out from (B), then stops coming out, and this cycle repeats while air is being blown into (A).

Courtesy of SUBARU OF AMERICA, INC.
After inspection, install the related parts in the reverse order of removal.
