PCV System 2

WARNING: This page is about a different variant/trim than selected.

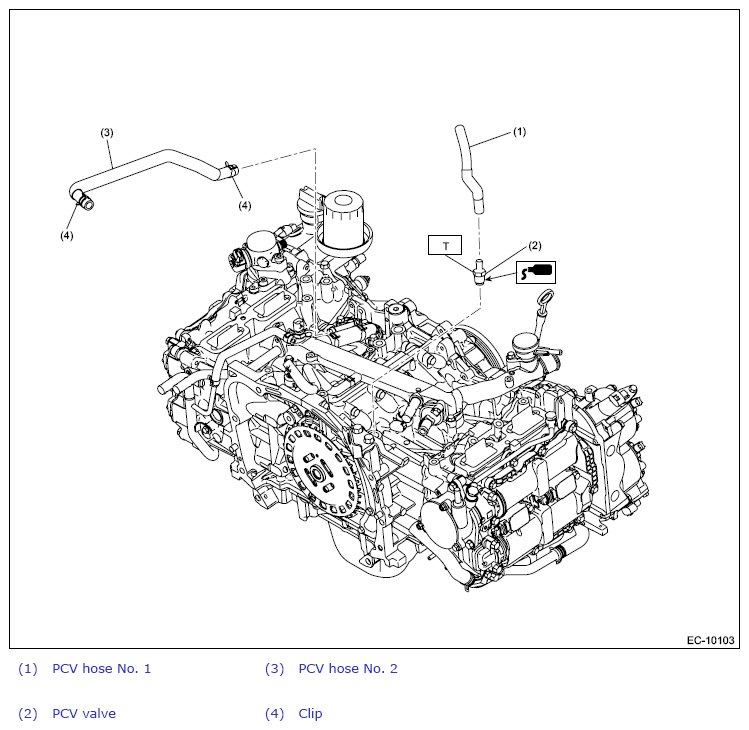

Fig 1: PCV System 2 Components
G13875737Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 23 (2.3, 17.0)
