Section 19 (Emission Control Systems (Aux. Emission Control Devices) (Except For HEV)): Canister: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the rear differential.
    NOTE: This operation procedure would be possible by simply lowering the rear differential to the position that the work is possible. In that case, it is not necessary to pull out the drive shaft from the rear differential.

    VA-type:

    Ref. to DIFFERENTIALS>REAR DIFFERENTIAL (VA-TYPE)>REMOVAL .

    VB-type:

    Ref. to DIFFERENTIALS>REAR DIFFERENTIAL (VB-TYPE)>REMOVAL .

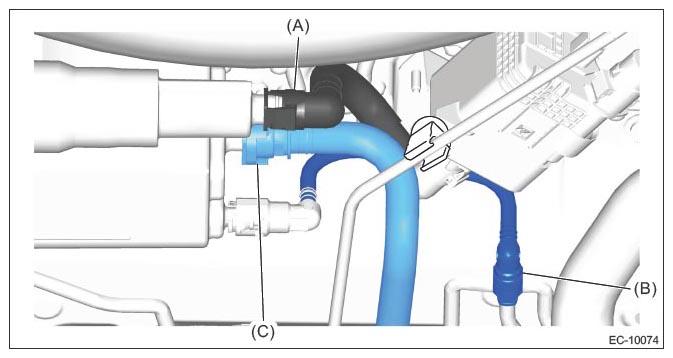

  2. Disconnect the drain tube (A) and purge tube (B).

    Drain tube:

    Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO (EXCEPT FOR HEV))>FUEL DELIVERY AND EVAPORATION LINES>REMOVAL>QUICK CONNECTOR DISCONNECTION (TYPE E) .

    Purge tube:

    Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO (EXCEPT FOR HEV))>FUEL DELIVERY AND EVAPORATION LINES>REMOVAL>QUICK CONNECTOR DISCONNECTION (TYPE G) .

  3. Disconnect the vent tube (C). Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO (EXCEPT FOR HEV))>FUEL DELIVERY AND EVAPORATION LINES>REMOVAL>QUICK CONNECTOR DISCONNECTION (TYPE F) .
    G11253028Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the canister.

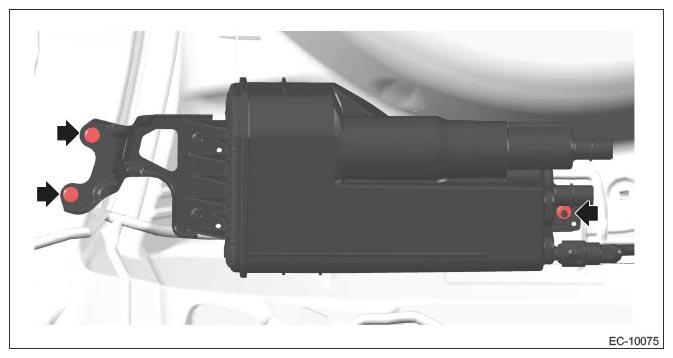

    • Impreza model
      G11253029Courtesy of SUBARU OF AMERICA, INC.

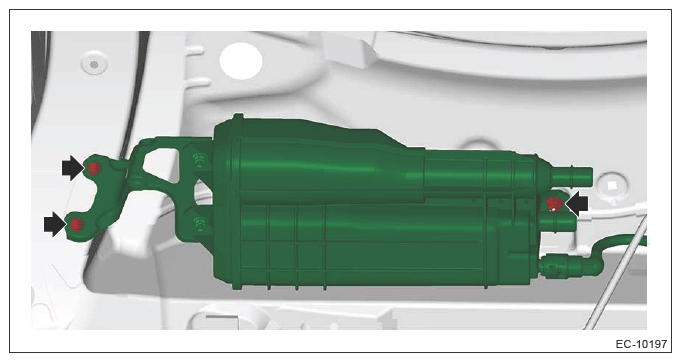

    • Crosstrek model
    G13224135Courtesy of SUBARU OF AMERICA, INC.
  5. Disconnect the purge tube from the canister. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO (EXCEPT FOR HEV))>FUEL DELIVERY AND EVAPORATION LINES>REMOVAL>QUICK CONNECTOR DISCONNECTION (TYPE D) .
  6. Remove the canister bracket.
