Turbine Speed Sensor: Removal

WARNING: This page is about a different variant/trim than selected.
CAUTION:

If water or oil contacts the connector terminal of turbine speed sensor, replace it with a new part.

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the front exhaust pipe. Ref. to EXHAUST (H4DO (EXCEPT FOR HEV))>FRONT EXHAUST PIPE>REMOVAL .

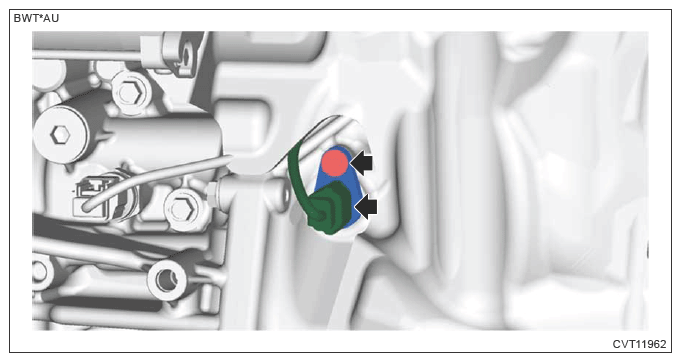

  3. Disconnect the connector and remove the turbine speed sensor.
    G13603183Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the O-ring from the turbine speed sensor.
