Transmission Rear CROSSMEMBER And Rear Cushion Rubber

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the front exhaust pipe. Ref. to EXHAUST (H4DO (EXCEPT FOR HEV))>FRONT EXHAUST PIPE>REMOVAL .
  3. Remove the center exhaust cover.
    G13224646Courtesy of SUBARU OF AMERICA, INC.
  4. Set the transmission jack under the transmission.
    CAUTION:

    Make sure that the support plates of transmission jack do not touch the oil pan.

  5. Remove the transmission rear crossmember.
    G11255537Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the rear cushion rubber.

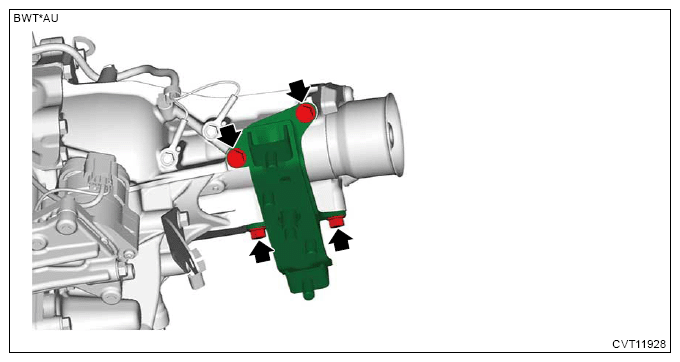

G13603148Courtesy of SUBARU OF AMERICA, INC.
