Transmission Harness: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the air breather hose. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 CROSSTREK)>AIR BREATHER HOSE>REMOVAL .
  2. Disconnect the connector and ground terminal as shown in the figure, and release the clips.

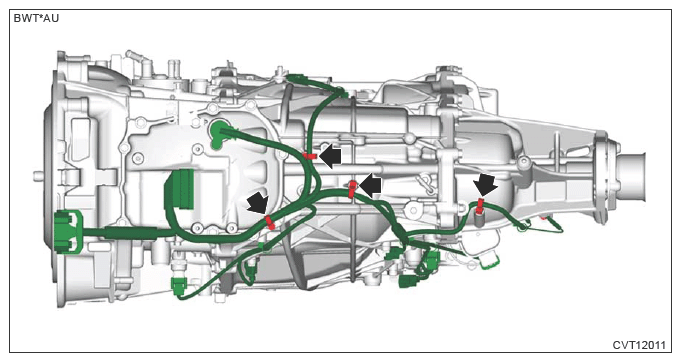

    G13603248Courtesy of SUBARU OF AMERICA, INC.

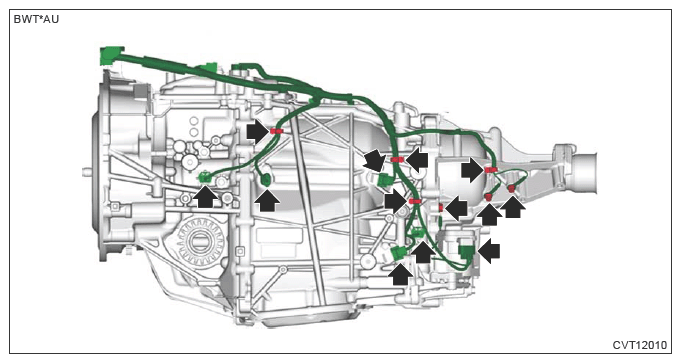

    G13603249Courtesy of SUBARU OF AMERICA, INC.

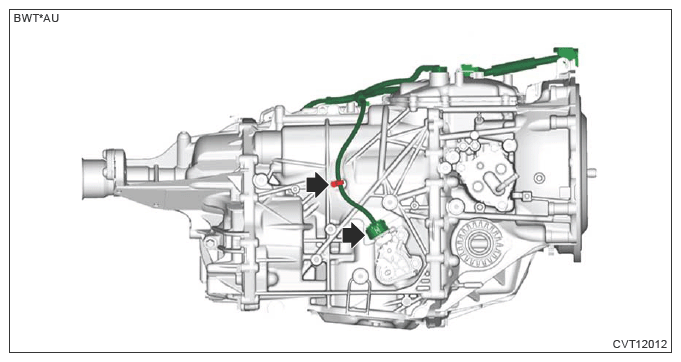

    G13603250Courtesy of SUBARU OF AMERICA, INC.
  3. Disconnect the transmission harness from the control valve body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 CROSSTREK)>CONTROL VALVE BODY>REMOVAL .
