Transmission Harness: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Connect the transmission harness to the control valve body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 CROSSTREK)>CONTROL VALVE BODY>INSTALLATION .
  2. Connect the connector and ground terminal as shown in the figure, and install the clips.
    CAUTION:

    Pass the electric oil pump ground wire to the transmission side.

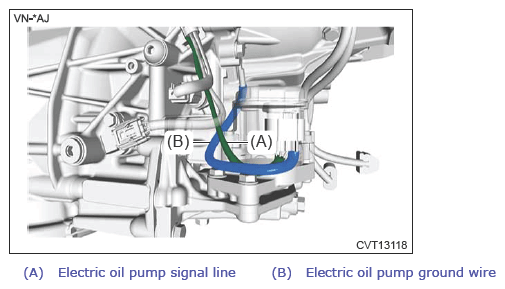

    G13935970Courtesy of SUBARU OF AMERICA, INC.
    NOTE:

    Let the ground terminal come into contact with the stopper (a) and tighten the bolt.

    G13935971Courtesy of SUBARU OF AMERICA, INC.
    G13935972Courtesy of SUBARU OF AMERICA, INC.

    Tightening torque:

    13 N.m (1.3 kgf-m, 9.6 ft-lb)

    G13603248Courtesy of SUBARU OF AMERICA, INC.
    G13603249Courtesy of SUBARU OF AMERICA, INC.
    G13603250Courtesy of SUBARU OF AMERICA, INC.
  3. Install the air breather hose. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 CROSSTREK)>AIR BREATHER HOSE>INSTALLATION .
