Transfer Driven Gear: Disassembly
WARNING: This page is about a different variant/trim than selected.

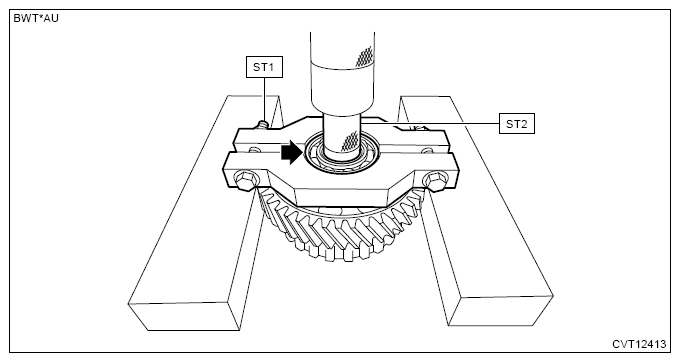

- Remove the ball bearing using ST1, ST2 and a press.
CAUTION:
Be careful not to drop the transfer driven gear.
Preparation tool:
ST1: REMOVER (498077400)
ST2: REMOVER (899864100)
 Courtesy of SUBARU OF AMERICA, INC.
|
