Transfer Clutch: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the extension case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 CROSSTREK)>EXTENSION CASE>REMOVAL .

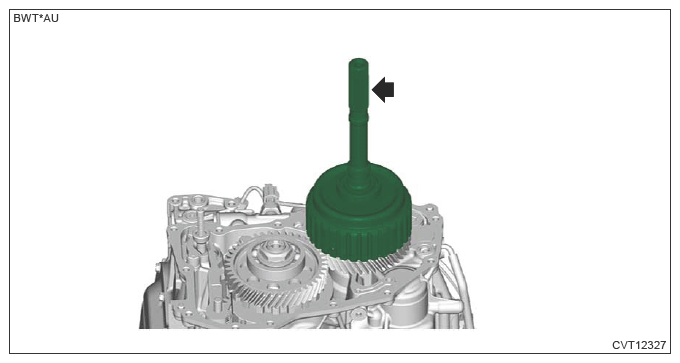

  2. Remove the rear drive shaft.
    G13936090Courtesy of SUBARU OF AMERICA, INC.

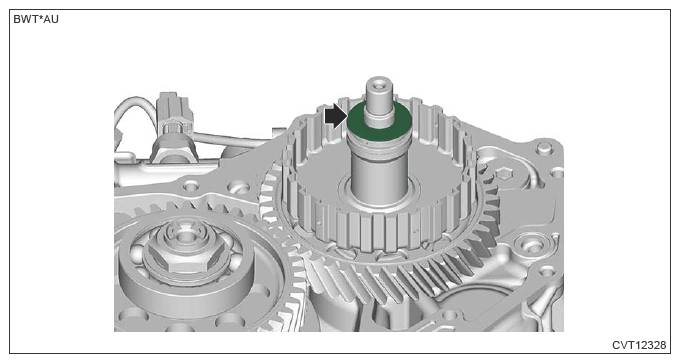

  3. Remove the thrust bearing.
    G13936091Courtesy of SUBARU OF AMERICA, INC.

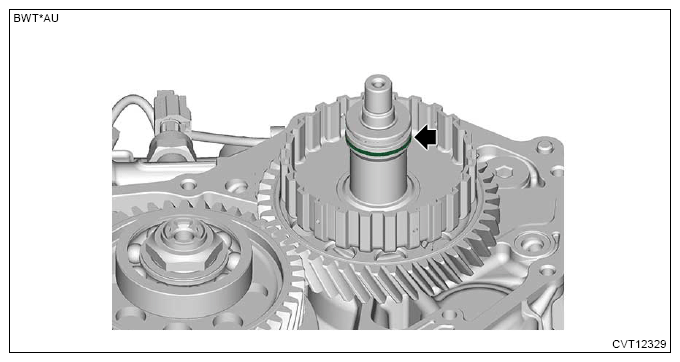

  4. Remove the seal rings.
G13936092Courtesy of SUBARU OF AMERICA, INC.
