Secondary Pressure Sensor: Removal

WARNING: This page is about a different variant/trim than selected.
CAUTION:
  • Vehicle components are extremely hot immediately after driving. Be wary of receiving burns from heated parts.
  • If CVTF spills over the engine, completely wipe it off to avoid emission of smoke and causing a fire.
  • If water or oil contacts the connector terminal of secondary pressure sensor, replace it with a new part.
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the front exhaust pipe. Ref. to EXHAUST (H4DO (EXCEPT FOR HEV))>FRONT EXHAUST PIPE>REMOVAL .

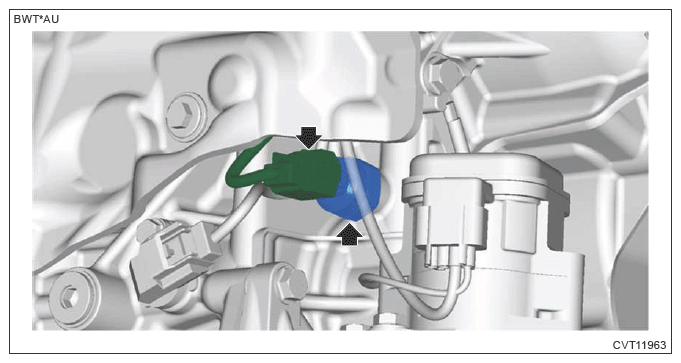

  3. Disconnect the connector and remove the secondary pressure sensor.
    NOTE:

    Prepare the container for draining of engine oil.

    G13603218Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the O-ring from the secondary pressure sensor.
