Reduction Driven Gear: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transfer driven gear. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 CROSSTREK)>TRANSFER DRIVEN GEAR>REMOVAL .
  2. Remove the parking pawl. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 CROSSTREK)>PARKING PAWL>REMOVAL .
  3. Remove the lubrication pipe.
    G13936116Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the O-rings.
    G13936117Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the transfer drive gear and oil spacer as a unit.
    G13936118Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the roller bearing.
    G13936119Courtesy of SUBARU OF AMERICA, INC.

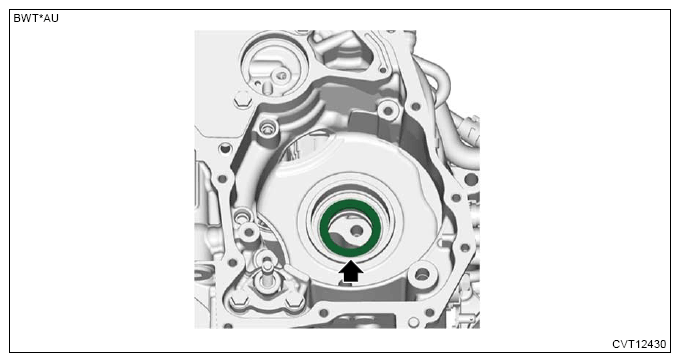

  7. Remove the thrust bearing.
G13936120Courtesy of SUBARU OF AMERICA, INC.
