Primary Speed Sensor: Removal

WARNING: This page is about a different variant/trim than selected.
CAUTION:

If water or oil contacts the connector terminal of primary speed sensor, replace it with a new part.

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the transmission body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 CROSSTREK)>TRANSMISSION ASSEMBLY>REMOVAL .

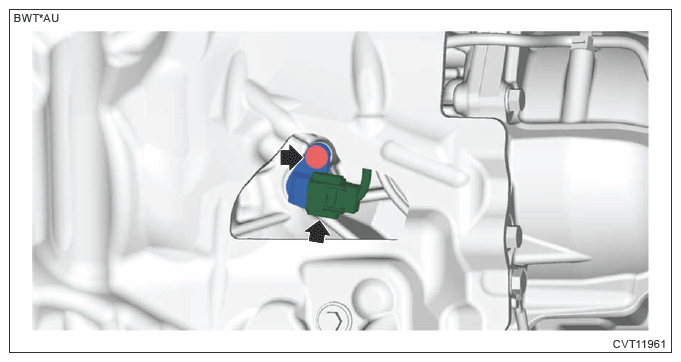

  3. Disconnect the connector, and remove the primary speed sensor.
    G13603205Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the O-ring from the primary speed sensor.
