After Overhaul

WARNING: This page is about a different variant/trim than selected.

Remove the ST (STAND ASSY).
Install the air breather hose. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 CROSSTREK)>AIR BREATHER HOSE>INSTALLATION .
Install the torque converter. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 CROSSTREK)>TORQUE CONVERTER>INSTALLATION .

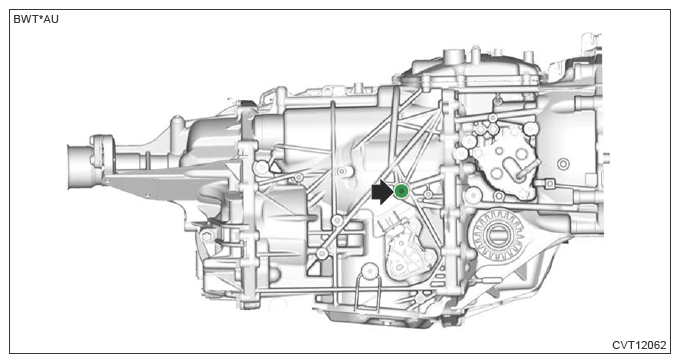

Remove the filler plug (for overhaul), and refill approx. 10 L (10.6 US qt, 8.8 Imp qt) of CVTF.
CAUTION:
Always use specified CVTF. Using fluid other than specified CVTF will cause malfunction.

CVTF:

Ref. to RECOMMENDED MATERIALS .

Courtesy of SUBARU OF AMERICA, INC.
Using a new gasket, install the filler plug (for overhaul).

Tightening torque:

50 N.m (5.1 kgf-m, 36.9 ft-lb)
