Parking Pawl: Installation

WARNING: This page is about a different variant/trim than selected.

Operate the shifter arm to set to the "N range" position.
NOTE:
Align the holes of the shifter arm and inhibitor switch.

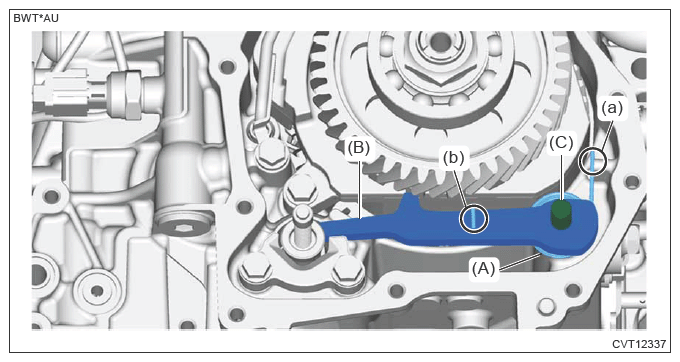

Install the return spring (A), parking pawl (B) and shaft (C).
NOTE:
- Make sure that the end (a) of return spring contacts the rib.
- Make sure that the end (b) of return spring is sticking out of the parking pawl.
Courtesy of SUBARU OF AMERICA, INC.
Install the extension case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 CROSSTREK)>EXTENSION CASE>INSTALLATION .
