Torque Converter & Converter Case
WARNING: This page is about a different variant/trim than selected.

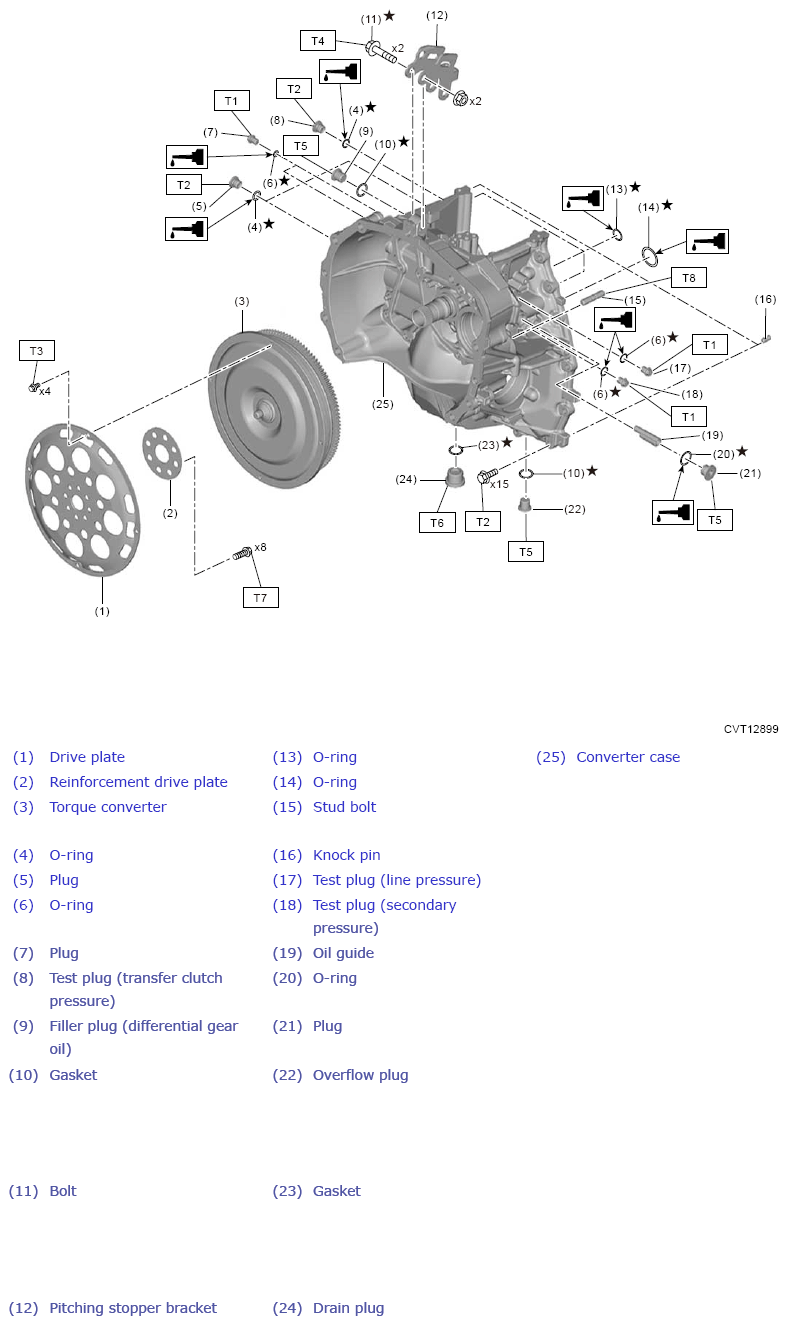

- 2.0 L model
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T1: 13 (1.3, 9.6)
T2: 22 (2.2, 16.2)
T3: 25 (2.5, 18.4)
T4: 32 (3.3, 23.6)
T5: 50 (5.1, 36.9)
T6: 70 (7.1, 51.6)
T7: Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 CROSSTREK)>DRIVE PLATE>INSTALLATION .
T8: Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 CROSSTREK)>CONVERTER CASE>ASSEMBLY .

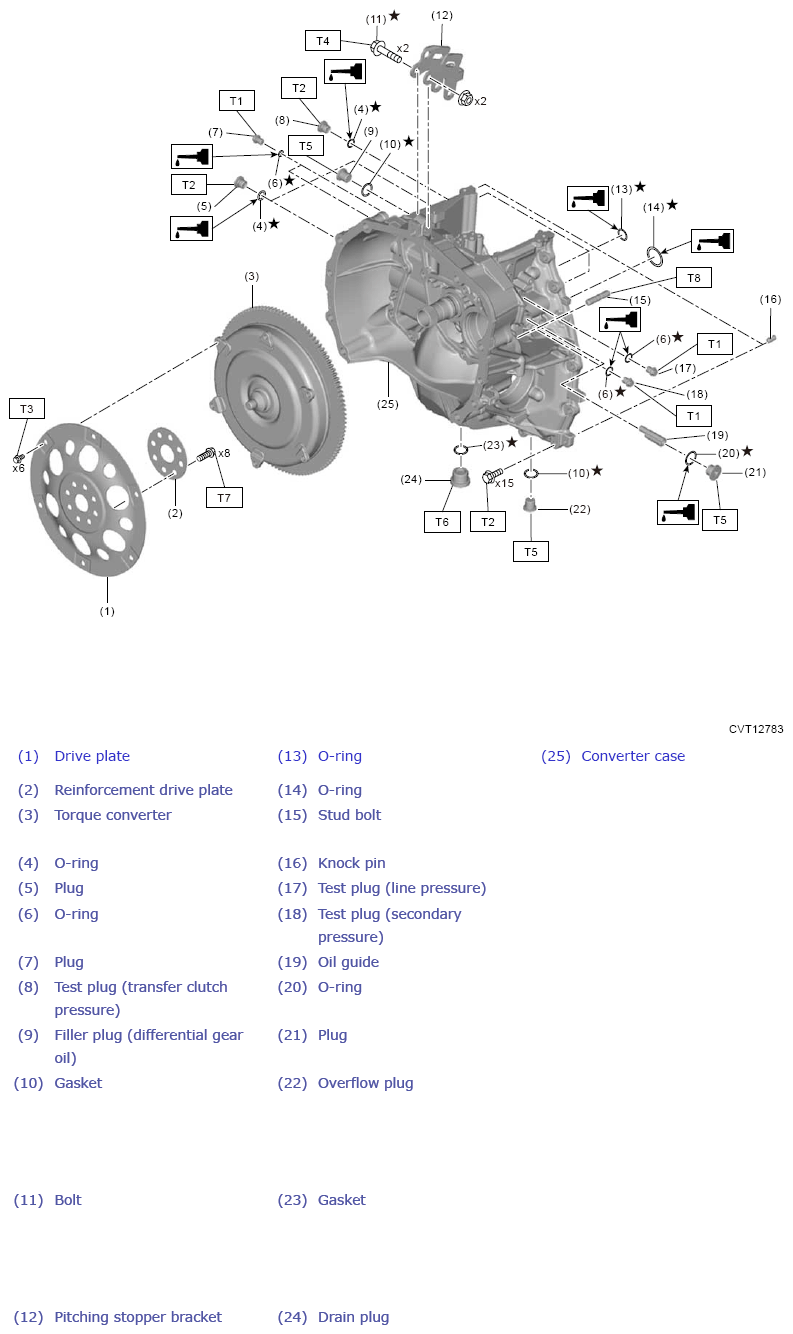

- 2.5 L model
Tightening torque: N.m (kgf-m, ft-lb)
T1: 13 (1.3, 9.6)
T2: 22 (2.2, 16.2)
T3: 25 (2.5, 18.4)
T4: 32 (3.3, 23.6)
T5: 50 (5.1, 36.9)
T6: 70 (7.1, 51.6)
T7: Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 CROSSTREK)>DRIVE PLATE>INSTALLATION .
T8: Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 CROSSTREK)>CONVERTER CASE>ASSEMBLY .
