Primary Pulley & Secondary Pulley, VARIATOR Chain And Reduction Drive Gear

WARNING: This page is about a different variant/trim than selected.

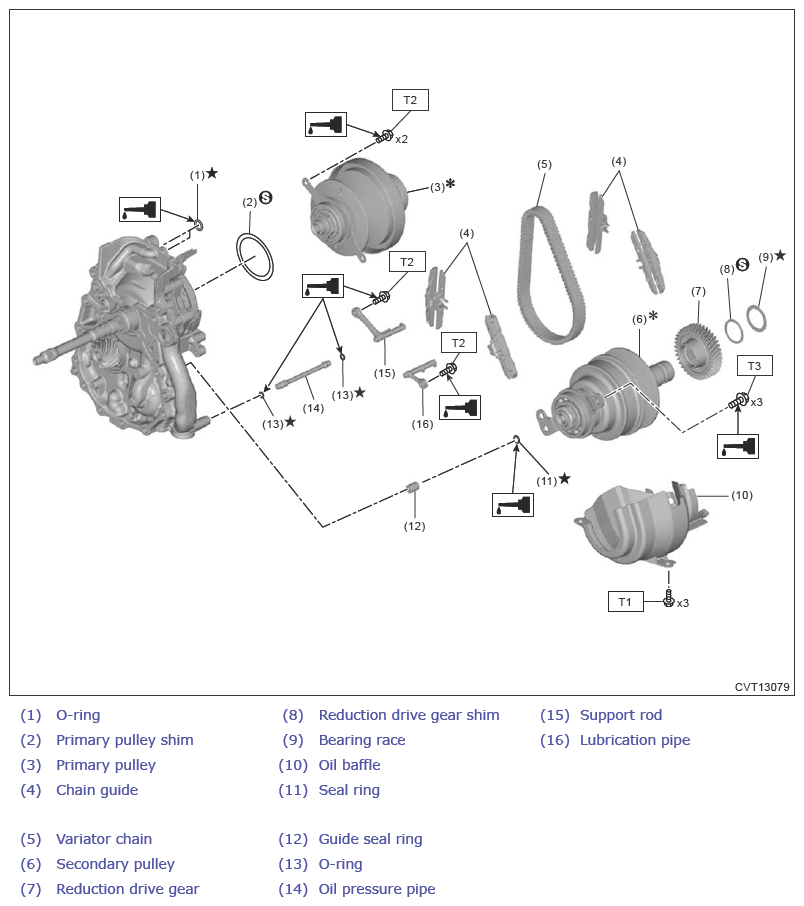

Fig 1: Primary Pulley & Secondary Pulley, Variator Chain And Reduction Drive Gear Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 16 (1.6, 11.8)

T2: 21 (2.1, 15.5)

*: The primary pulley and secondary pulley are set parts.
