Section 15 (CVT Transaxle (Tr580 CROSSTREK))
>>
General Description
>>
Components With Torque Specifications
>>
Oil Pump
Oil Pump
WARNING:
This page is about a different variant/trim than selected.

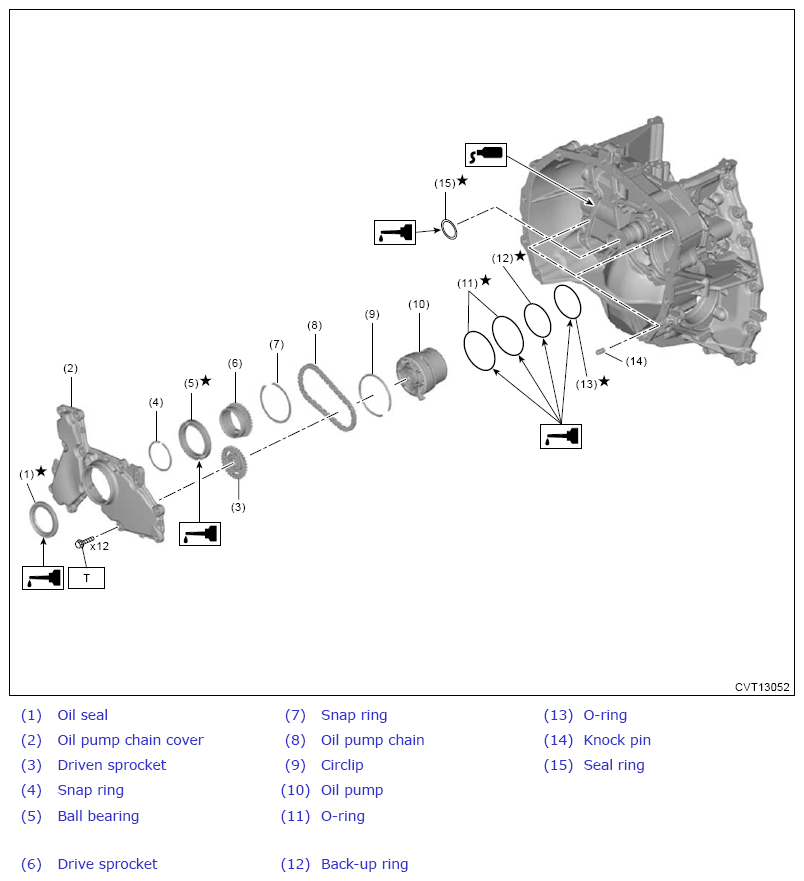

Fig 1: Oil Pump Components
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T: 21 (2.1, 15.5)
Courtesy of SUBARU OF AMERICA, INC.
