Planetary Carrier

WARNING: This page is about a different variant/trim than selected.

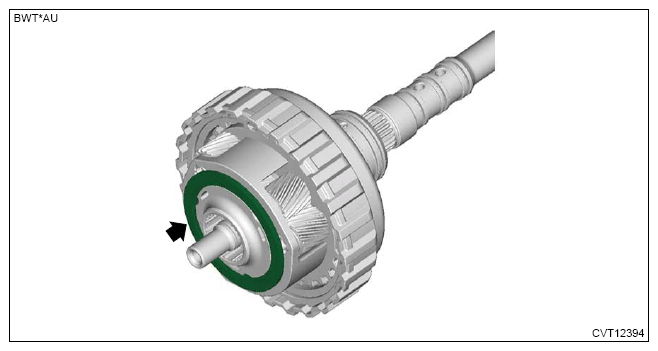

  1. Remove the thrust bearing.
    G13936266Courtesy of SUBARU OF AMERICA, INC.

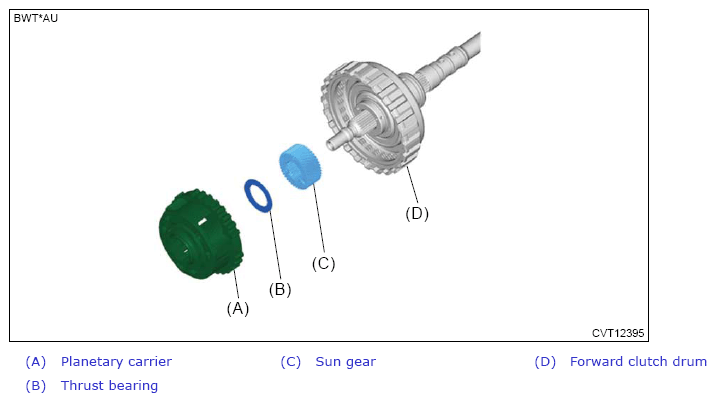

  2. Remove the planetary carrier, thrust bearing and sun gear.
    G13936267Courtesy of SUBARU OF AMERICA, INC.

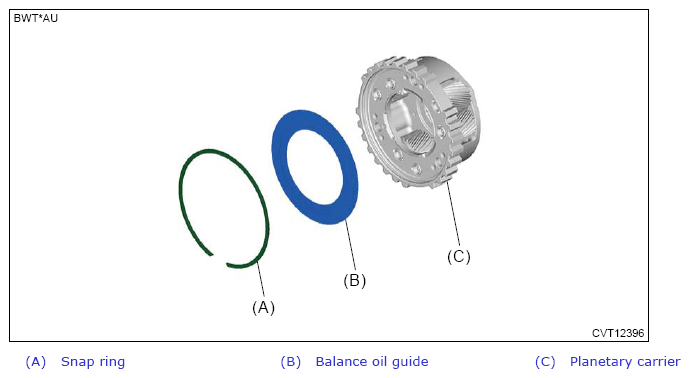

  3. Remove the snap ring and balance oil guide.
G13936268Courtesy of SUBARU OF AMERICA, INC.
