Internal Gear

WARNING: This page is about a different variant/trim than selected.
  1. Remove the internal gear.
    G13936264Courtesy of SUBARU OF AMERICA, INC.

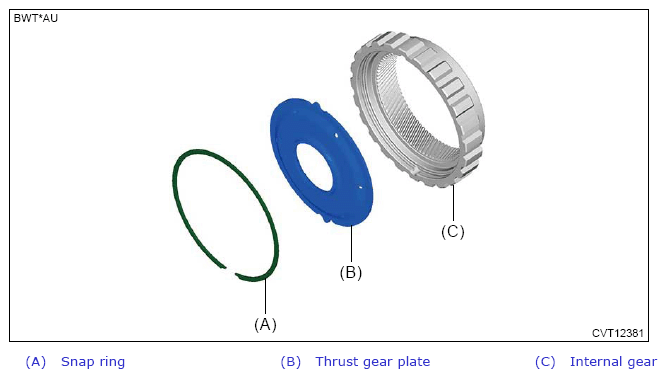

  2. Remove the snap ring and thrust gear plate.
G13936265Courtesy of SUBARU OF AMERICA, INC.
