Planetary Carrier

WARNING: This page is about a different variant/trim than selected.

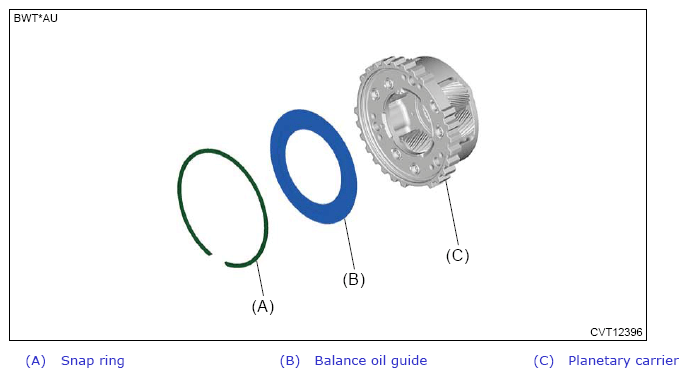

  1. Install the balance oil guide and snap ring.
    G13936283Courtesy of SUBARU OF AMERICA, INC.

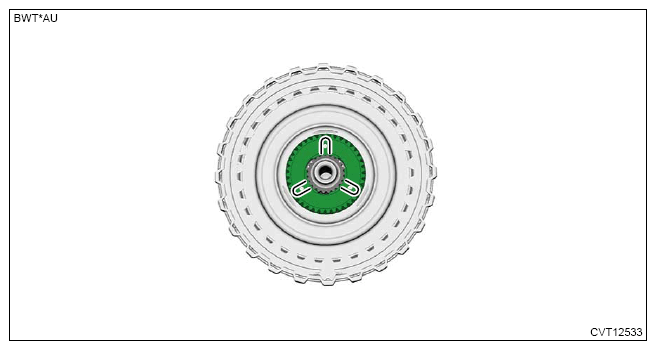

  2. Install the sun gear.
    NOTE:

    Make sure to install in the right direction.

    G13936284Courtesy of SUBARU OF AMERICA, INC.

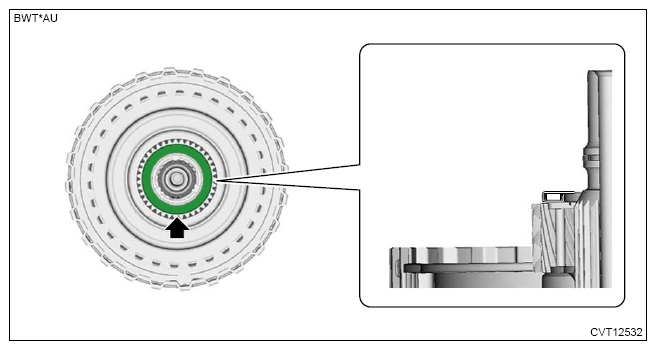

  3. Install the thrust bearing.
    NOTE:

    Make sure to install in the right direction.

    G13936285Courtesy of SUBARU OF AMERICA, INC.

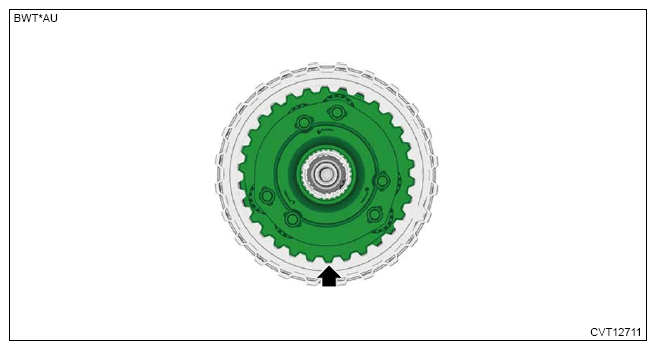

  4. Install the planetary carrier.
    G13936286Courtesy of SUBARU OF AMERICA, INC.

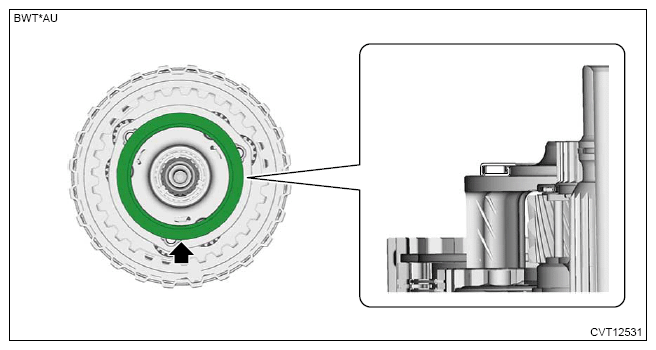

  5. Install the thrust bearing.
NOTE:

Make sure to install in the right direction.

G13936287Courtesy of SUBARU OF AMERICA, INC.
