Internal Gear

WARNING: This page is about a different variant/trim than selected.

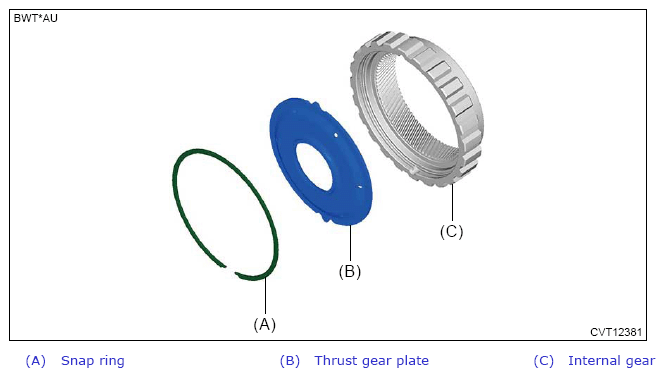

  1. Install the thrust gear plate and snap ring.
    G13936288Courtesy of SUBARU OF AMERICA, INC.
  2. Install the internal gear.
G13936264Courtesy of SUBARU OF AMERICA, INC.
