Electric Fluid Pump: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  2. Drain the CVTF. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 CROSSTREK)>CVTF>REPLACEMENT .
  3. Remove the front exhaust pipe. Ref. to EXHAUST (H4DO (EXCEPT FOR HEV))>FRONT EXHAUST PIPE>REMOVAL .

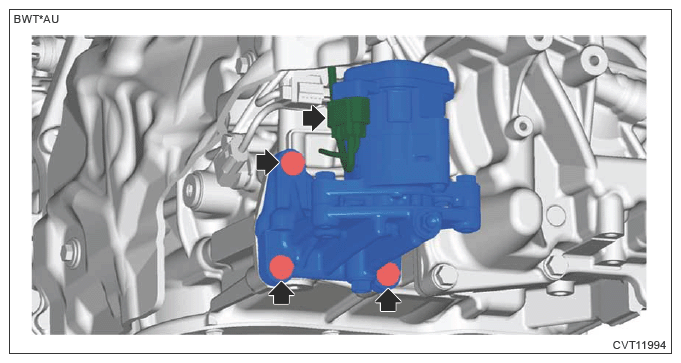

  4. Disconnect the connector and remove the electric oil pump.
    NOTE:

    Prepare the container for draining of engine oil.

    G13603241Courtesy of SUBARU OF AMERICA, INC.

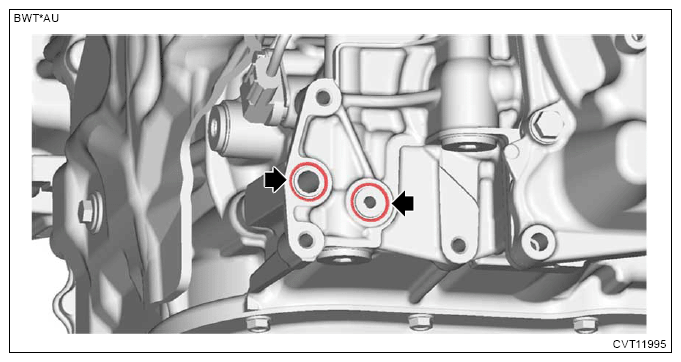

  5. Remove the O-rings.
G13603242Courtesy of SUBARU OF AMERICA, INC.
