Electric Fluid Pump: Disassembly

WARNING: This page is about a different variant/trim than selected.

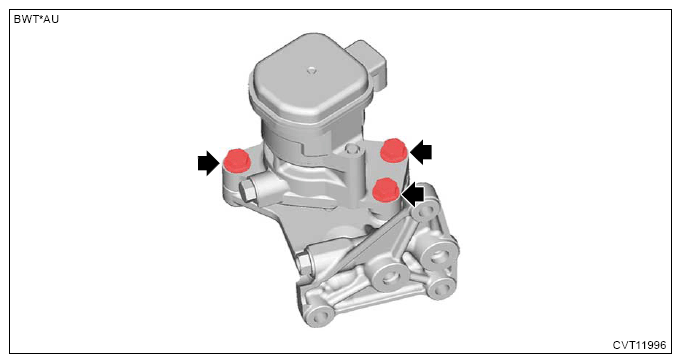

  1. Remove the electric oil pump.
    G13603245Courtesy of SUBARU OF AMERICA, INC.

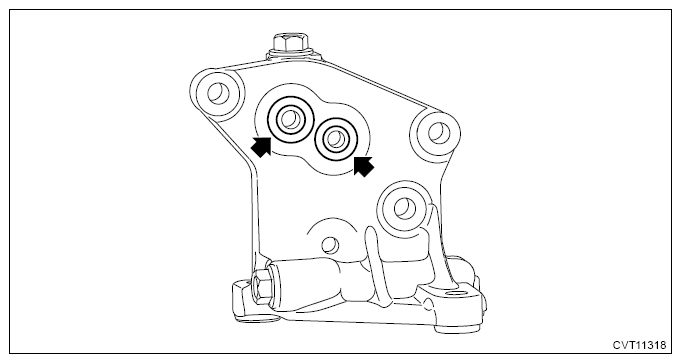

  2. Remove the O-rings.
    G13225752Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the plug.
G13225753Courtesy of SUBARU OF AMERICA, INC.
