Converter Case: Disassembly

WARNING: This page is about a different variant/trim than selected.

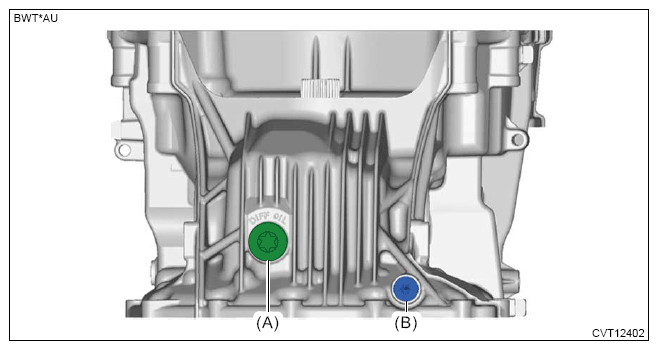

  1. Remove the drain plug (A) using TORX® bit T70.
  2. Remove the overflow plug (B).
    G13936376Courtesy of SUBARU OF AMERICA, INC.

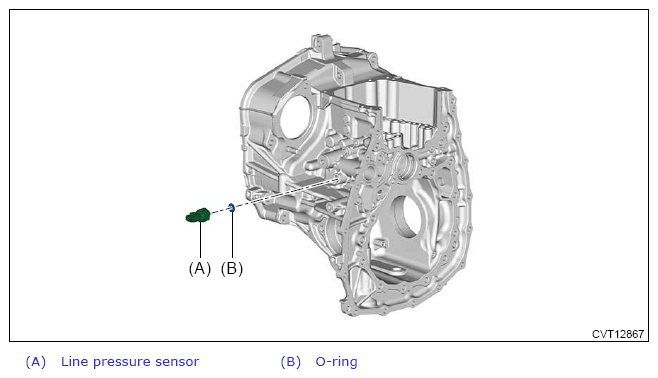

  3. Remove the line pressure sensor and O-ring.
    G13936377Courtesy of SUBARU OF AMERICA, INC.

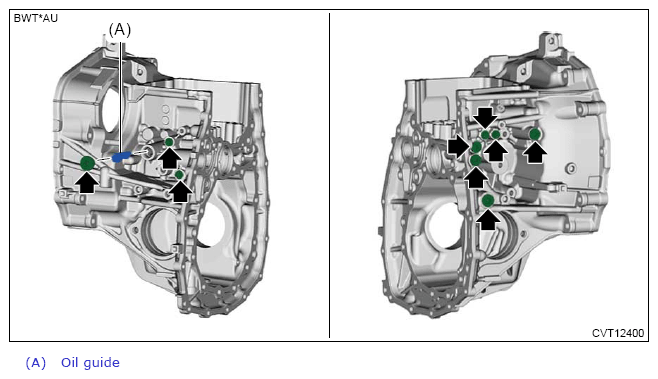

  4. Remove the plugs and oil guide.
    G13936378Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the stud bolt.
G13592394Courtesy of SUBARU OF AMERICA, INC.
