CVTF Cooler (With Warmer Function): Removal

WARNING: This page is about a different variant/trim than selected.

CAUTION:

Wait until the CVTF cools down before starting the procedure.
If CVTF and engine coolant is spilt over the engine or the exhaust pipe, completely wipe it off to avoid emission of smoke or causing a fire.

Drain engine coolant. Ref. to COOLING (H4DO (EXCEPT FOR HEV))>ENGINE COOLANT>REPLACEMENT .
Remove the clip from the air intake boot, and loosen the clamp.

Courtesy of SUBARU OF AMERICA, INC.
Remove the air intake boot, and place it aside so that it does not interfere with the work.
CAUTION:
Be careful not to pull out the PCV hose.

Courtesy of SUBARU OF AMERICA, INC.

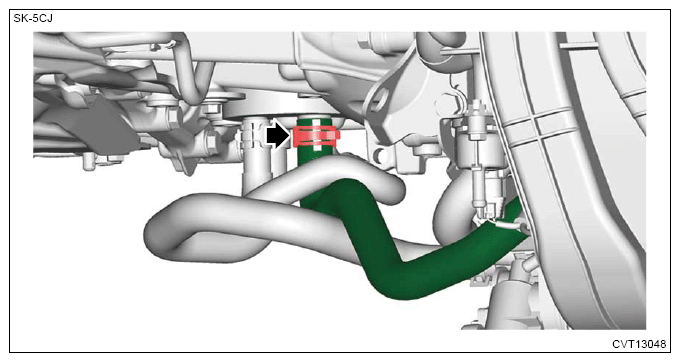

Disconnect the water hose (inlet) and water hose (outlet).

NOTE:

Prepare the container for draining of the coolant.

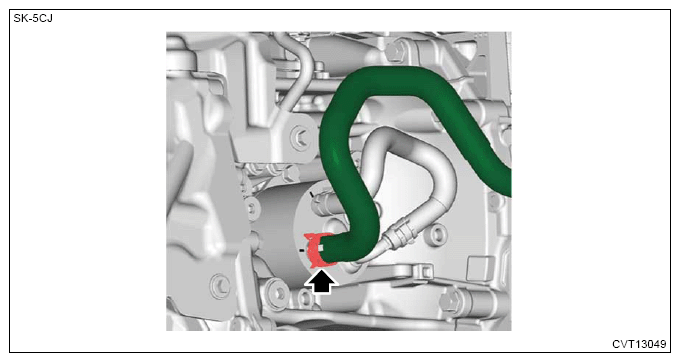

Disconnect the water hose (inlet).

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

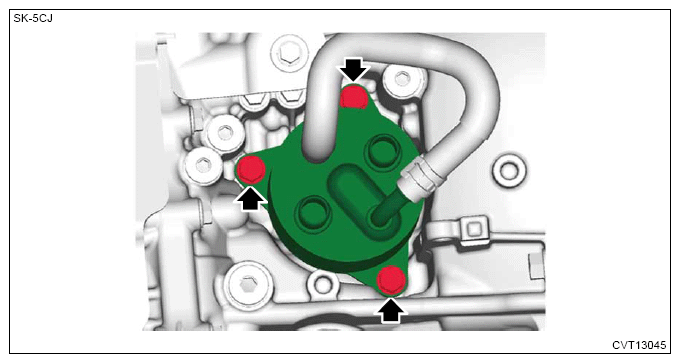

Remove the CVTF cooler (with warmer feature).
NOTE:
Prepare the container for draining of engine oil.

Courtesy of SUBARU OF AMERICA, INC.
Remove the O-rings.

Courtesy of SUBARU OF AMERICA, INC.

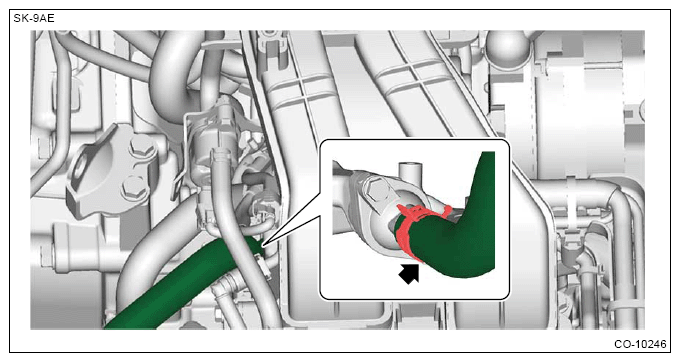

Remove the water hose (inlet).

NOTE:

Perform this procedure only when required.

Courtesy of SUBARU OF AMERICA, INC.
