CVTF Cooler (With Warmer Function): Installation
WARNING: This page is about a different variant/trim than selected.
CAUTION:
If CVTF and engine coolant is spilt over the engine or the exhaust pipe, completely wipe it off to avoid emission of smoke or causing a fire.

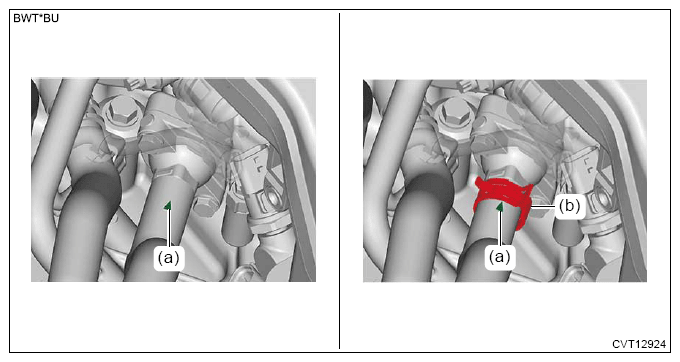

- Connect the water hose (inlet).NOTE:
- Face the mark (a) of water hose (inlet) in the top direction.
- Align the claw and the center of the claw of hose clamp (b) with the mark (a) of water hose (inlet).
- Install a new O-ring.
- Install the CVTF cooler (with warmer feature).CAUTION:
Be careful not to allow any foreign materials to enter the CVTF cooler (with warmer feature) and the transmission body during installation.

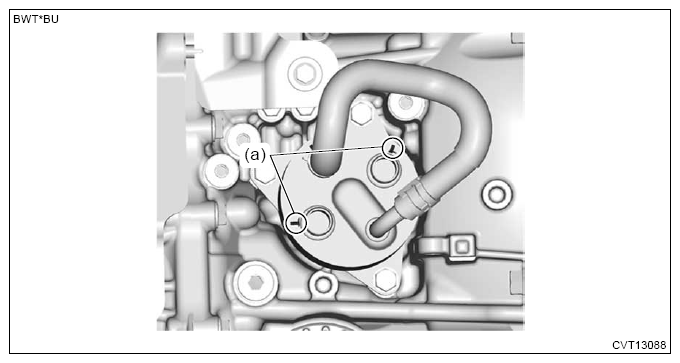

NOTE:Check the mark (a) of CVTF cooler (with warmer function).
Tightening torque:
19 N.m (1.9 kgf-m, 14.0 ft-lb)
- Connect the water hose.

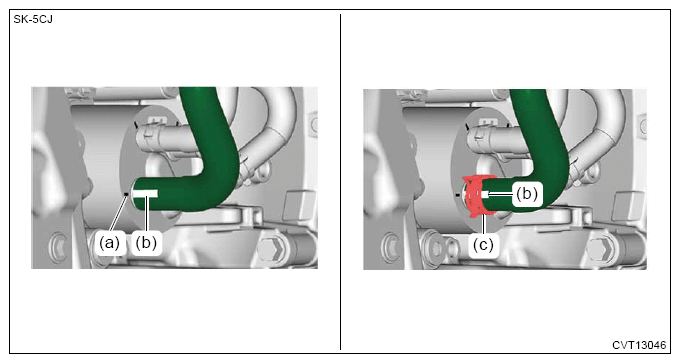

- Connect the water hose (outlet).NOTE:
- Align the mark (a) of CVTF cooler (with warmer feature) with the mark (b) of water hose (outlet).
- Align the claw and the center of the claw of hose clamp (c) with the mark (b) of water hose (outlet).
- Set the hose clamp (c) so that the both ends of the mark (b) of water hose (outlet) can be seen.

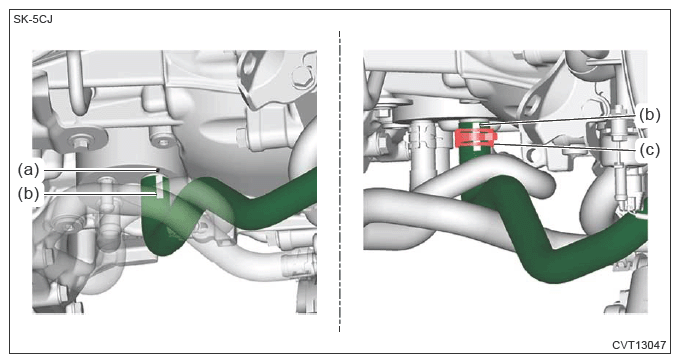

- Connect the water hose (inlet).
NOTE:- Align the mark (a) of CVTF cooler (with warmer feature) with the mark (b) of water hose (inlet).
- Align the claw and the center of the claw of hose clamp (c) with the mark (b) of water hose (inlet).
- Set the hose clamp (c) so that the both ends of the mark (b) of water hose (inlet) can be seen.
- Connect the water hose (outlet).
- Install the air intake boot. Ref. to INTAKE (INDUCTION) (H4DO (EXCEPT FOR HEV))>AIR INTAKE BOOT>INSTALLATION .
- Fill engine coolant. Ref. to COOLING (H4DO (EXCEPT FOR HEV))>ENGINE COOLANT>REPLACEMENT .
- Check the CVTF level. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 CROSSTREK)>CVTF>INSPECTION .
