CVTF Cooler (With Warmer Function): Disassembly

WARNING: This page is about a different variant/trim than selected.

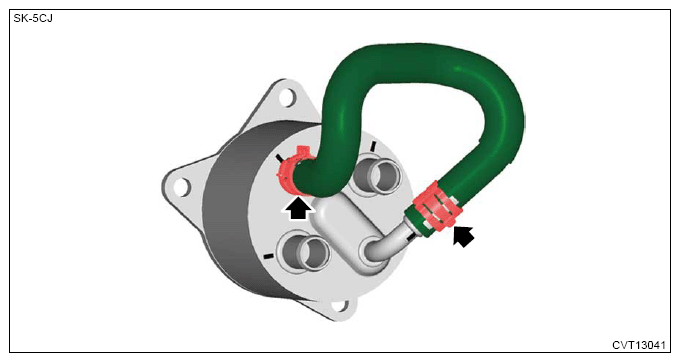

  1. Remove the CVTF cooler hose.
NOTE:

Perform this procedure only when required.

G13936004Courtesy of SUBARU OF AMERICA, INC.
