CVTF Cooler (With Warmer Function): Assembly
WARNING: This page is about a different variant/trim than selected.
- Connect a new CVTF cooler hose.
NOTE:

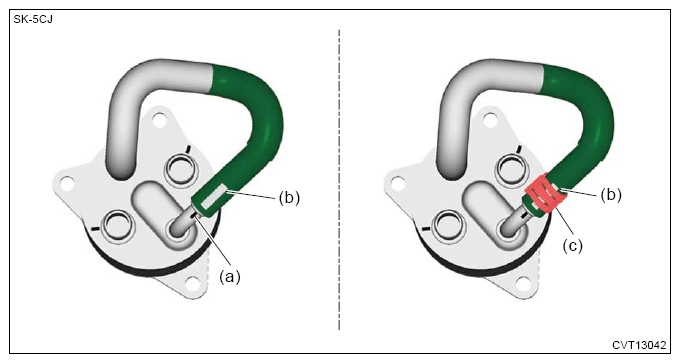

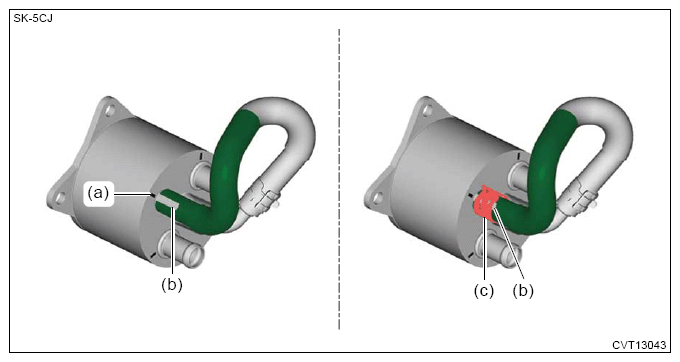

- Align the mark (a) of CVTF cooler (with warmer feature) with the mark (b) of CVTF cooler hose.
- Align the claw and the center of the claw of hose clamp (c) with the mark (b) of CVTF cooler hose.
- Set the hose clamp (c) so that the both ends of the mark (b) of CVTF cooler hose can be seen.
