Front Differential Side
WARNING: This page is about a different variant/trim than selected.
- Install the air breather cap.
- Install the air breather hose to the transmission body.

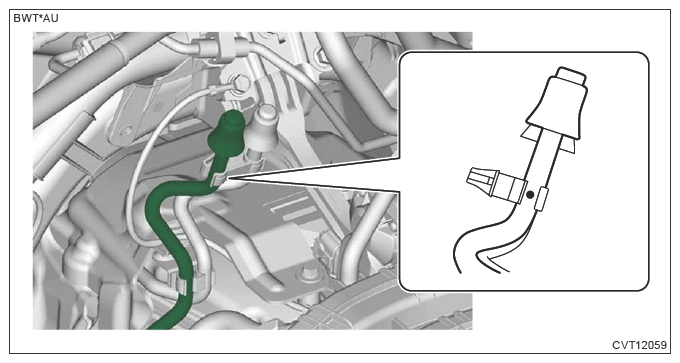

- Install the air breather hose to the air breather hose bracket.NOTE:
Assemble with the mark position facing in the direction shown in the figure.
- Install the air intake boot. Ref. to INTAKE (INDUCTION) (H4DO (EXCEPT FOR HEV))>AIR INTAKE BOOT>INSTALLATION .
