Transfer Case and Extension Case Assembly: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the manual transmission assembly from the vehicle. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (6MT)>MANUAL TRANSMISSION ASSEMBLY>REMOVAL .
  2. Remove the back-up light switch and the neutral position switch. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (6MT)>SWITCHES AND HARNESS>REMOVAL .
  3. Remove the transfer case together with the extension case assembly.

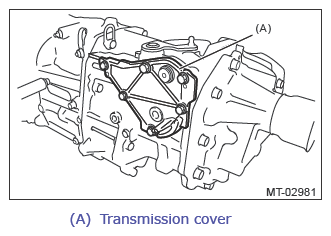

    1. Remove the transmission cover.
      G13937650Courtesy of SUBARU OF AMERICA, INC.
    2. Set and hold the selector lever COMPL to the 1st-2nd side, and remove the transfer case and extension case assembly as a unit.
      G09482571Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the transfer cover.
    G09482572Courtesy of SUBARU OF AMERICA, INC.
  5. Use the ST (REMOVER) to push out the straight pin, and remove the shift lever COMPL.
    G13937653Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the extension case assembly.
    G08581954Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the transfer driven gear and center differential as a unit.
    G13233732Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the taper roller bearing (extension case side) outer race and the adjusting washer.
    G13937656Courtesy of SUBARU OF AMERICA, INC.
