Back-Up Light And Neutral Position Switch

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the clip from the air intake boot, and loosen the clamp.
    G11256093Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the air intake boot, and place it aside so that it does not interfere with the work.
    CAUTION: Be careful not to pull out the PCV hose.
    G11256094Courtesy of SUBARU OF AMERICA, INC.

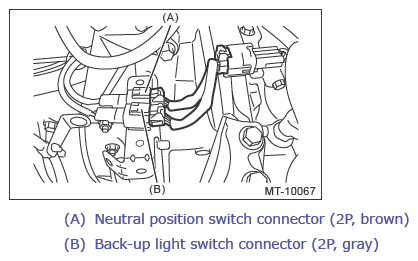

  4. Remove the coupling harness.
    G13937636Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the harness connector from bracket.
  6. Lift up the vehicle.
  7. Remove the crossmember support - rear LH.
    G11256169Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the front exhaust pipe. Ref. to EXHAUST (H4DO (EXCEPT FOR HEV))>FRONT EXHAUST PIPE>REMOVAL .
  9. Remove the harness from each clip.

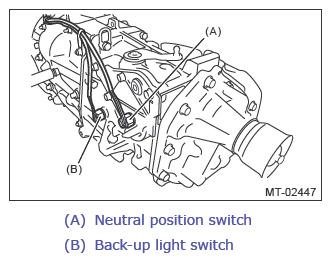

  10. Remove the back-up light switch & neutral position switch with the harness.
    G13937638Courtesy of SUBARU OF AMERICA, INC.
