Back-Up Light And Neutral Position Switch
WARNING: This page is about a different variant/trim than selected.

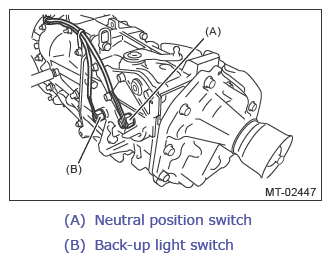

- Replace the gasket with a new part, and install the back-up light switch & neutral position switch together with the harness.
Tightening torque: 32.3 N.m (3.3 kgf-m, 23.8 ft-lb)
- Secure the harness on each clip.
- Install the front exhaust pipe. Ref. to EXHAUST (H4DO (EXCEPT FOR HEV))>FRONT EXHAUST PIPE>INSTALLATION .
- Install the crossmember support - rear LH.
Tightening torque: 70 N.m (7.1 kgf-m, 51.6 ft-lb)
- Lower the vehicle.

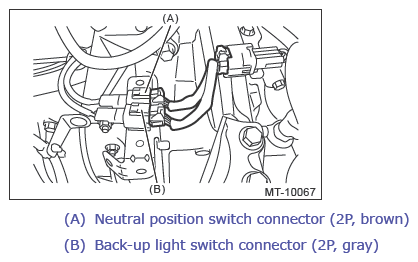

- Secure the harness connector to the bracket.
- Install the coupling harness.
- Install the air intake boot. Ref. to INTAKE (INDUCTION) (H4DO (EXCEPT FOR HEV))>AIR INTAKE BOOT>INSTALLATION .
- Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
