Shift Link Assembly: Installation

WARNING: This page is about a different variant/trim than selected.

Clean the mating surface of the transmission cover and transfer case.
Replace the seal ring with a new part, and install the shift accent plunger and the check ball spring.
Tightening torque: 25 N.m (2.5 kgf-m, 18.4 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install a new needle bearing using the ST1 and ST2.
CAUTION: If the press-fit depth exceeds the service limit, replace with a new needle bearing.

Preparation tool: ST1: COMPRESSOR SHAFT (18763AA000)

ST2: STOPPER SET (498277200)

Specification: A: 8.5±0.2 mm (0.33±0.01 in) from the end of transfer case

Courtesy of SUBARU OF AMERICA, INC.

B: 0.2±0.2 mm (0.01±0.01 in) from the end of transfer case

Courtesy of SUBARU OF AMERICA, INC.
Set ST1, ST2 and transfer case to a press.
NOTE:
- Set the ST2 under ST1.
- Set the transfer case so that the hole for shifter arm is positioned vertically.
Preparation tool: ST1: CYLINDER HEAD TABLE (498267300)

ST2: CYLINDER HEAD TABLE (498267200)

Courtesy of SUBARU OF AMERICA, INC.
Using the ST, install a new roller bearing.
CAUTION: If the press-fit depth exceeds the service limit, replace with a new bearing.

NOTE: Gradually perform the press-fit operation while measuring the press-fit depth.

Preparation tool: ST: REMOVER (899864100)

Specification: A: 5.1±0.2 mm (0.20±0.01 in) from the finished surface of transfer case

Courtesy of SUBARU OF AMERICA, INC.
Flip over the transfer case, and set an iron plate between transfer case and ST (CYLINDER HEAD TABLE).
NOTE:
- Insert the iron plate which is thicker than the exposed length of the transfer case knock pin between ST (CYLINDER HEAD TABLE) and transfer case.
- Set the parts while taking care that the transfer case knock pin and the roller bearing do not ride over the iron plate.
Using the ST, install a new roller bearing.
CAUTION: If the press-fit depth exceeds the service limit, replace with a new bearing.

NOTE: Gradually perform the press-fit operation while measuring the press-fit depth.

Preparation tool: ST: REMOVER (899864100)

Specification: A: 0±0.2 mm (0±0.01 in) from the end of transfer case

Courtesy of SUBARU OF AMERICA, INC.
Install a new oil seal using ST.
NOTE:
- The illustration shows the oil seal of selector lever COMPL. Perform the same procedures for installing the oil seal of shifter arm No. 2.
- Apply transmission gear oil to the oil seal lips.
Preparation tool: ST: INSTALLER (18657AA000)

Specification: 1±0.2 mm (0.04±0.01 in) from the end of transfer case

Courtesy of SUBARU OF AMERICA, INC.

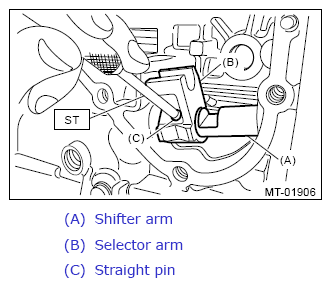

Insert the shifter arm and fix with a new straight pin.
Preparation tool: ST: REMOVER (398791700)

Courtesy of SUBARU OF AMERICA, INC.

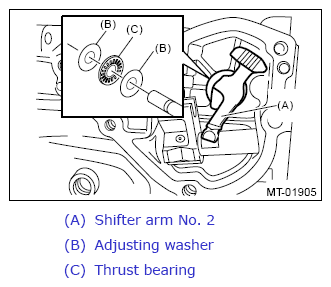

Install the shifter arm No. 2, adjusting washers and thrust bearing.
CAUTION: Be careful not to damage the oil seal.

Courtesy of SUBARU OF AMERICA, INC.

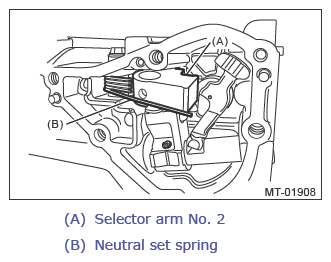

Replace the gasket with a new part, and install the shifter arm collar and neutral set spring.
Tightening torque: 6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the selector arm No. 2.

Courtesy of SUBARU OF AMERICA, INC.

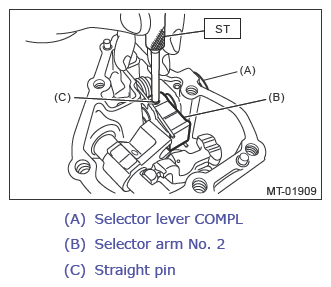

Insert the selector lever COMPL and fix with a new straight pin using the ST.
CAUTION: Be careful not to damage the oil seal.

Special tool: ST: REMOVER (398791700)

Courtesy of SUBARU OF AMERICA, INC.

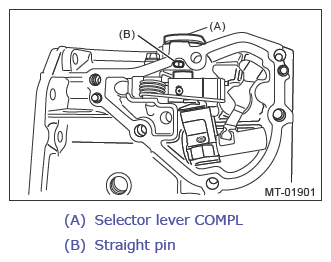

Insert a new straight pin.

Courtesy of SUBARU OF AMERICA, INC.
Install the center differential and transfer driven gear as a unit.
Install the transfer case and the extension case assembly. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (6MT)>TRANSFER CASE AND EXTENSION CASE ASSEMBLY>INSTALLATION .
Apply liquid gasket seamlessly.
Liquid gasket: THREE BOND 1215B or equivalent

Courtesy of SUBARU OF AMERICA, INC.

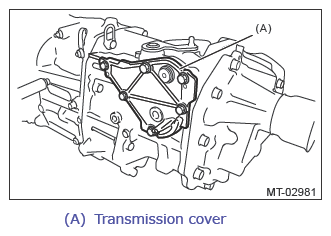

Install the transmission cover.
Tightening torque: 25 N.m (2.5 kgf-m, 18.4 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the back-up light switch and the neutral position switch. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (6MT)>SWITCHES AND HARNESS>INSTALLATION .
Install the manual transmission assembly to the vehicle. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (6MT)>MANUAL TRANSMISSION ASSEMBLY>INSTALLATION .
