Transmission Case

WARNING: This page is about a different variant/trim than selected.

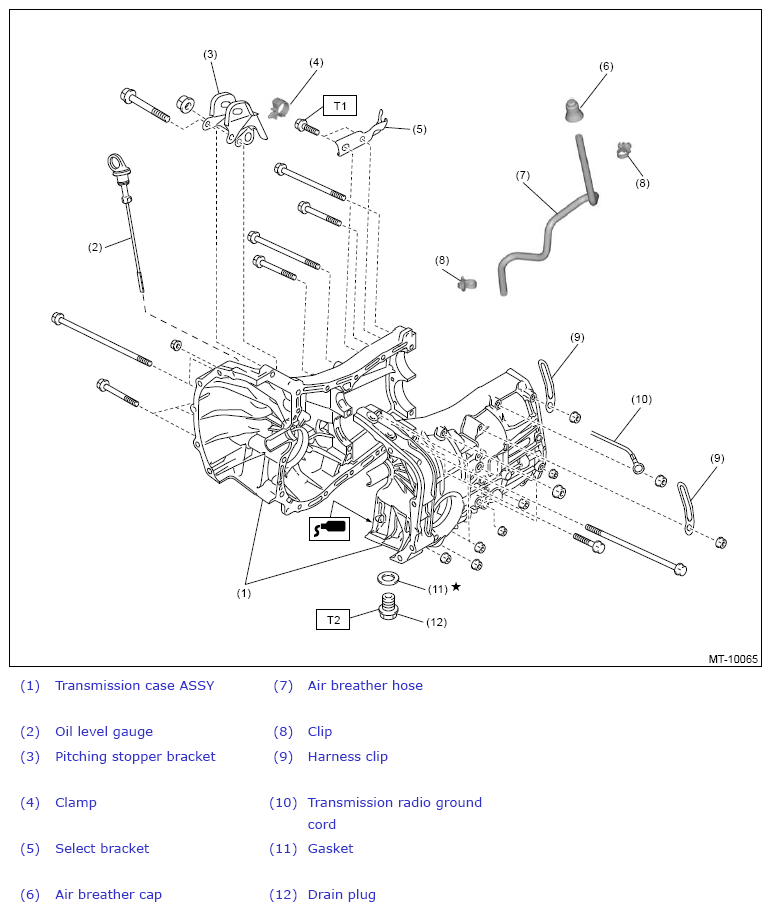

Fig 1: Transmission Case Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 18 (1.8, 13.3)

T2: 44 (4.5, 32.5) (aluminum gasket, silver)

70 (7.1, 51.6) (copper gasket, brown)

70 (7.1, 51.6) (metal gasket, black)

TRANSMISSION CASE TIGHTENING TORQUE

Courtesy of SUBARU OF AMERICA, INC.	Bolt No.	Bolt size mm	Tightening torque: N.m (kgf-m, ft-lb)
	(5)-(15)	8	25 (2.5, 18.4)
	(1)-(4) (16), (17)	10	40 (4.1, 29.5)
