Shifter Fork And Shifter Rod
WARNING:
This page is about a different variant/trim than selected.

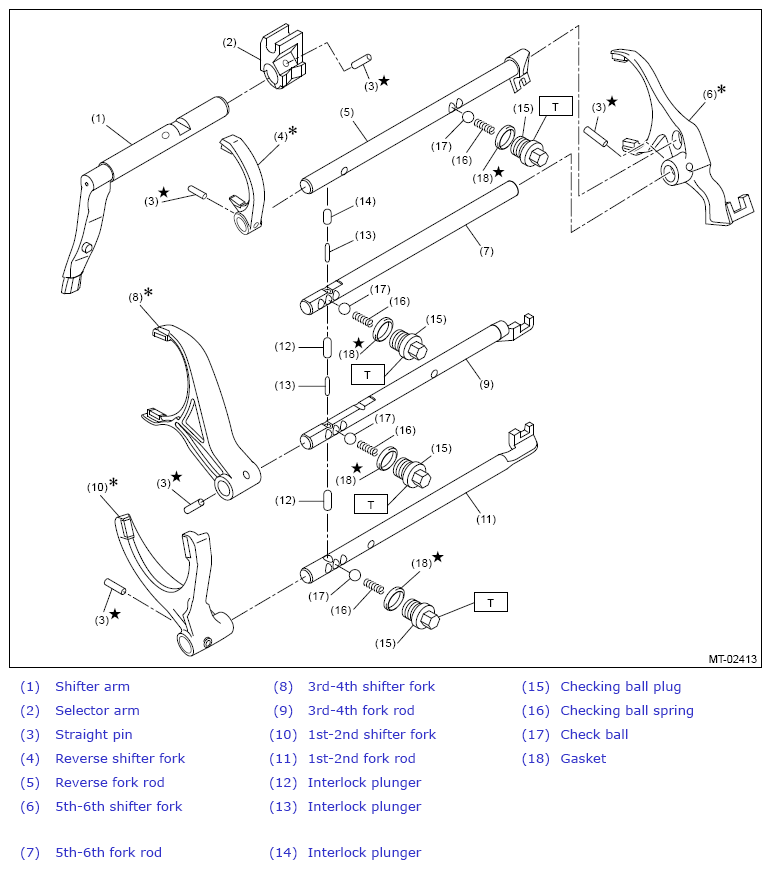

Fig 1: Shifter Fork And Shifter Rod Components
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T: 20 (2.0, 14.8)
