System Block Diagram
WARNING: This page is about a different variant/trim than selected.

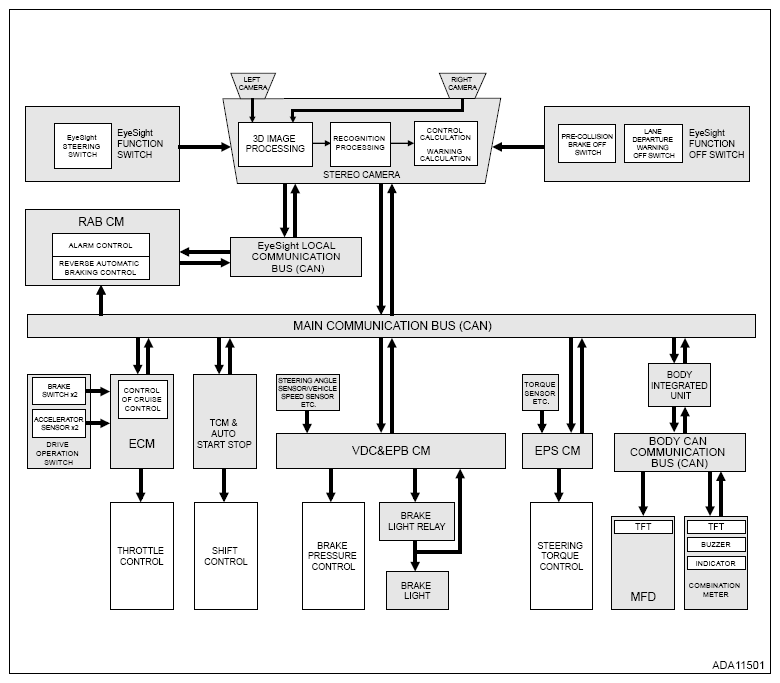

Main signals used between stereo camera and relevant control module
- Due to the presence of the RAB function, the connection between the stereo camera and the RAB control module are made via local communication line.
- The connection between the combination meter and the MFD are made from body integrated unit via body CAN.
