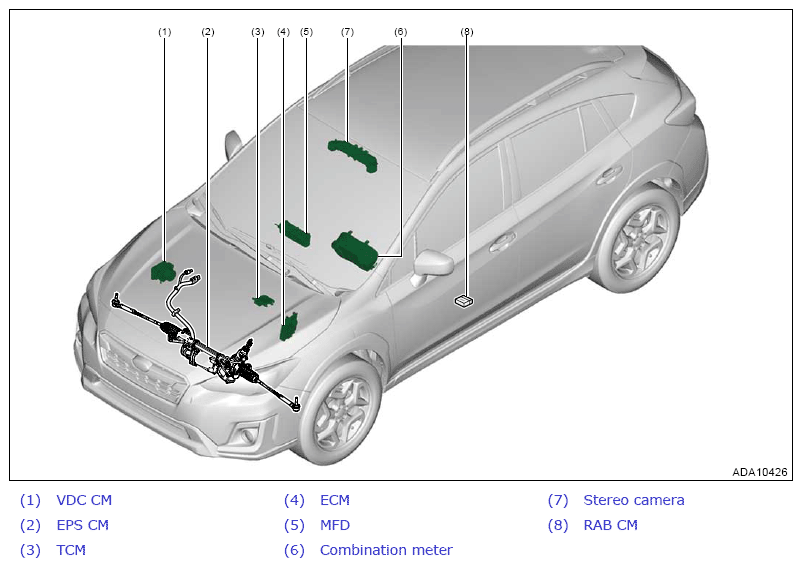

Section 13 (SUBARU Eyesight System (Driver Assist) (Diagnostics) (Except For HEV)): Electrical Component Location: Location

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

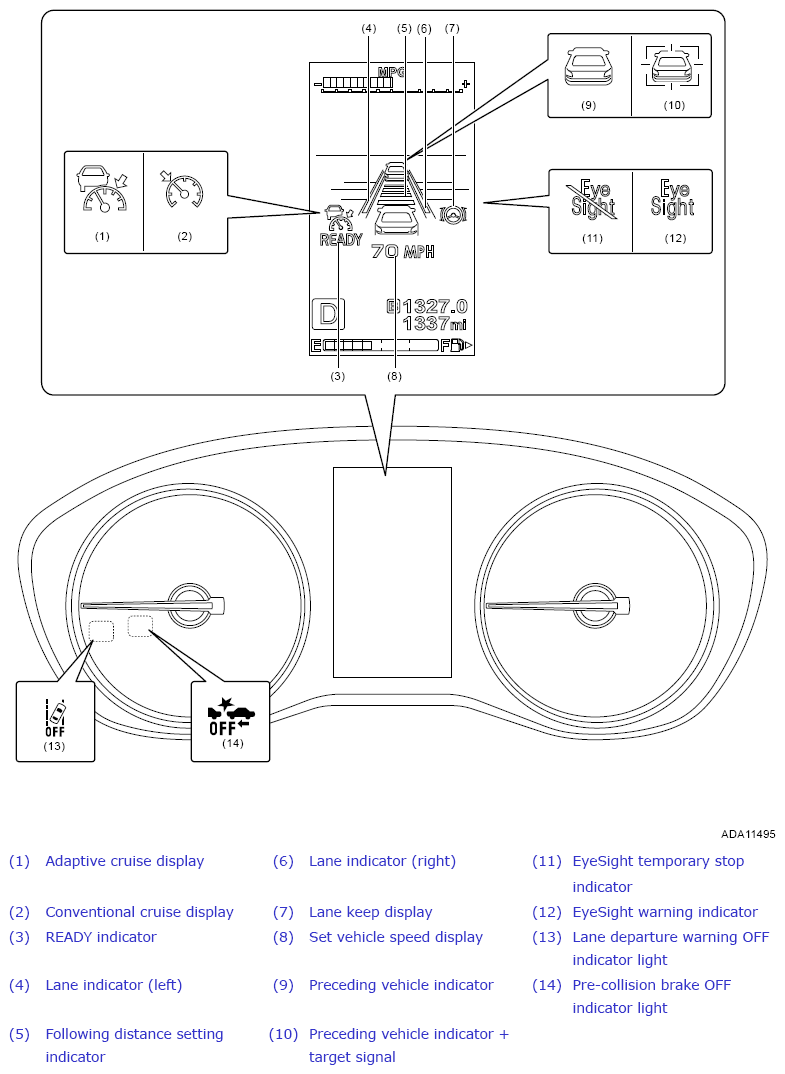

Without traffic jam assist/lane keep assist function

Courtesy of SUBARU OF AMERICA, INC.

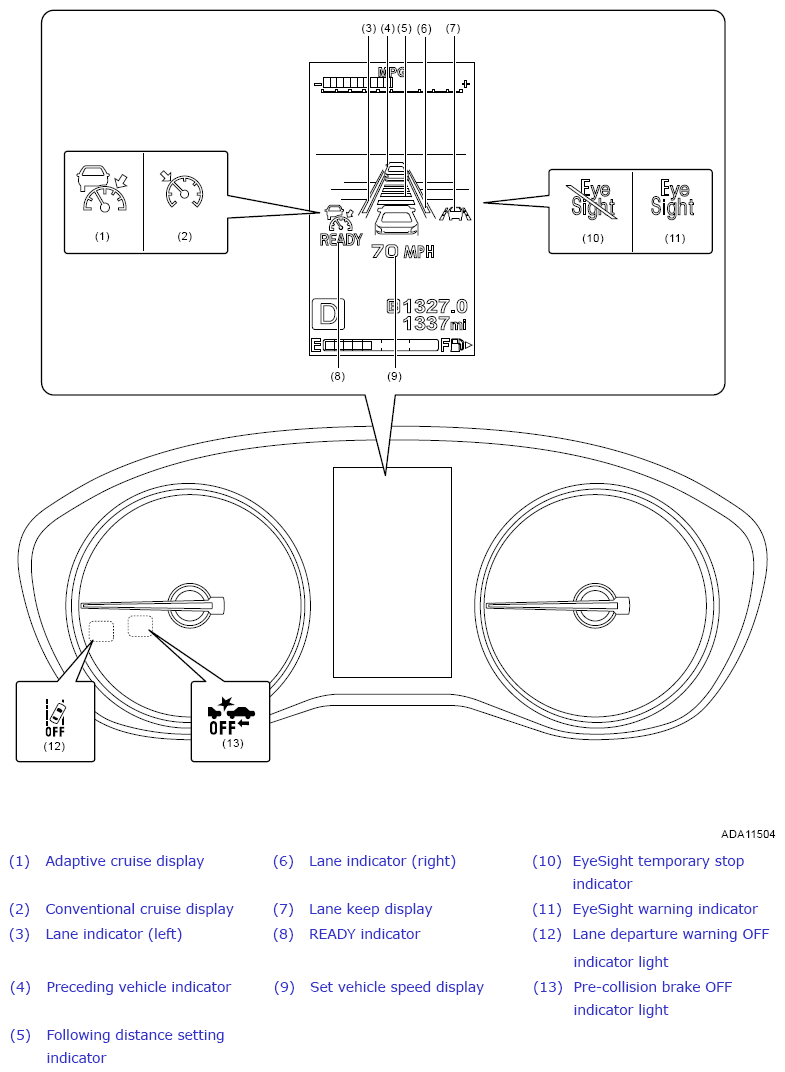

With traffic jam assist/lane keep assist function

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

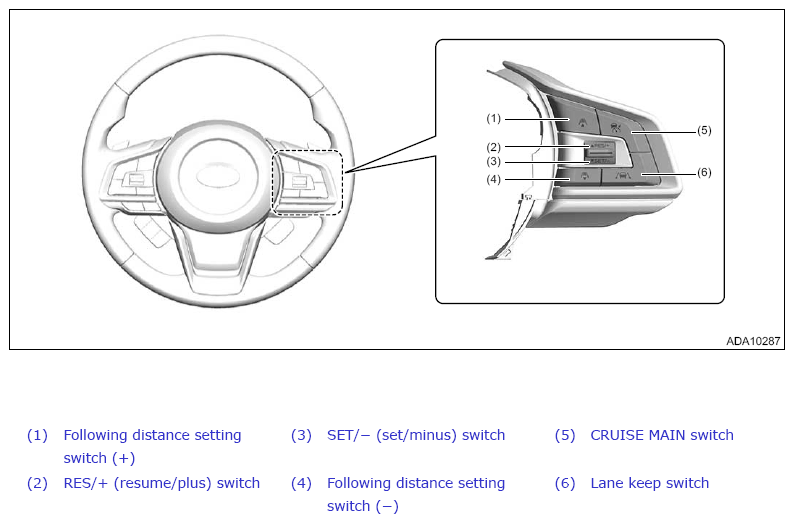

Without traffic jam assist/lane keep assist function

Courtesy of SUBARU OF AMERICA, INC.

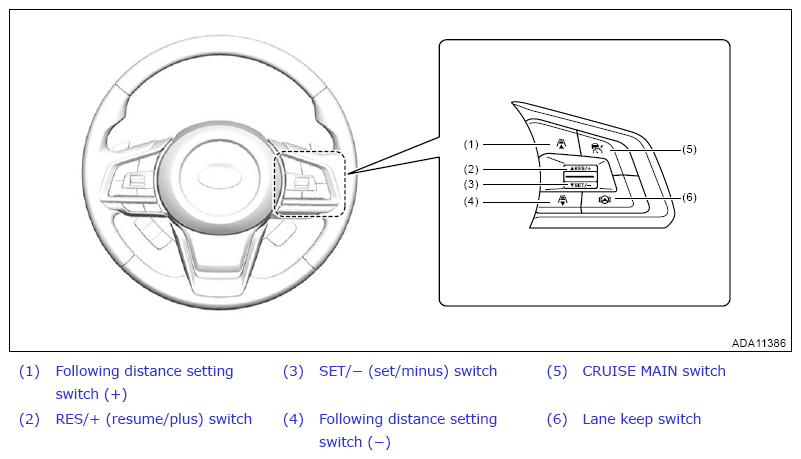

With traffic jam assist/lane keep assist function

Courtesy of SUBARU OF AMERICA, INC.
