Clutch Disc and Cover: Installation

WARNING: This page is about a different variant/trim than selected.

Install the release bearing & lever. Ref. to CLUTCH SYSTEM>RELEASE BEARING AND LEVER>INSTALLATION .

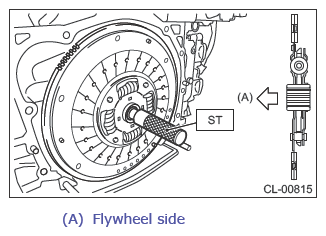

Insert the ST (CLUTCH DISC GUIDE) into the clutch disc.
Install it by inserting the end of the ST to the pilot bearing.
CAUTION: Pay attention to the orientation of the clutch disc.

Preparation tool:

ST: CLUTCH DISC GUIDE (499747100)

Courtesy of SUBARU OF AMERICA, INC.
Install the clutch cover and tighten the bolts to specified torque.
NOTE:
- When installing a clutch cover, position the clutch cover so that the spacing between the unbalance marks (paint mark) on the flywheel and clutch cover is 120° or more apart. (The unbalance mark indicates the direction of residual unbalance.)
- Temporarily tighten each bolt by hand, and tighten them to the specified torque in a crisscross order.
Tightening torque:

16 N.m (1.6 kgf-m, 11.8 ft-lb)

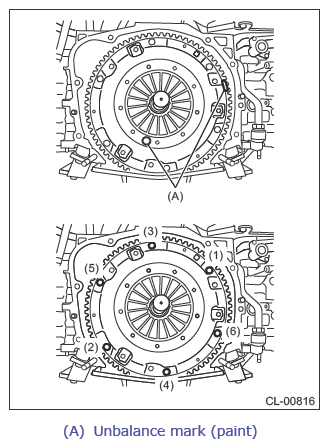

Fig 1: Clutch Cover Bolts Tightening Sequence
Courtesy of SUBARU OF AMERICA, INC.
Remove the ST (CLUTCH DISC GUIDE).
Install the manual transmission assembly.
- 5MT model: Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (5MT)>MANUAL TRANSMISSION ASSEMBLY>INSTALLATION .
- 6MT model: Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (6MT)>MANUAL TRANSMISSION ASSEMBLY>INSTALLATION .
