Clutch Disc

WARNING: This page is about a different variant/trim than selected.

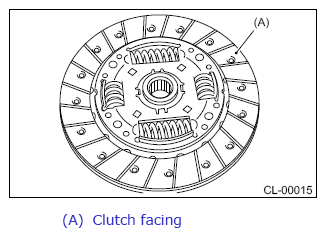

Facing wear
Measure the depth from the facing surface to the rivet head. Replace if the surface is partially worn or worn down to less than the specified value.

CAUTION: Do not wash the clutch disc with cleaning fluid .

Service limit:

0.8 mm (0.031 in)

Courtesy of SUBARU OF AMERICA, INC.
Hardened facing
Replace the clutch disc.

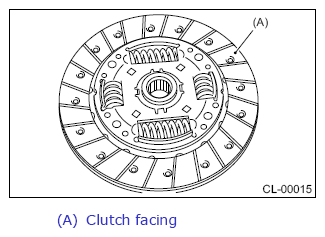

Oil soakage on facing
Replace the clutch disc and inspect the transmission front oil seal, transmission case mating surface, engine rear oil seal and other locations for oil leakage.

Courtesy of SUBARU OF AMERICA, INC.
Deflection on facing
If deflection exceeds the limit value at the outer circumference of the facing, replace the clutch disc.

Preparation tool:

ST: CLUTCH DISC GUIDE (499747100)

Service limit:

0.7 mm (0.028 in) at R = 110 mm (4.33 in)

Courtesy of SUBARU OF AMERICA, INC.

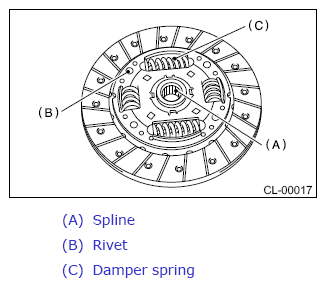

If there is spline wear, loose rivets, failed damper springs, etc., replace the clutch disc.

Courtesy of SUBARU OF AMERICA, INC.
