Vehicle Dynamics Control System: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

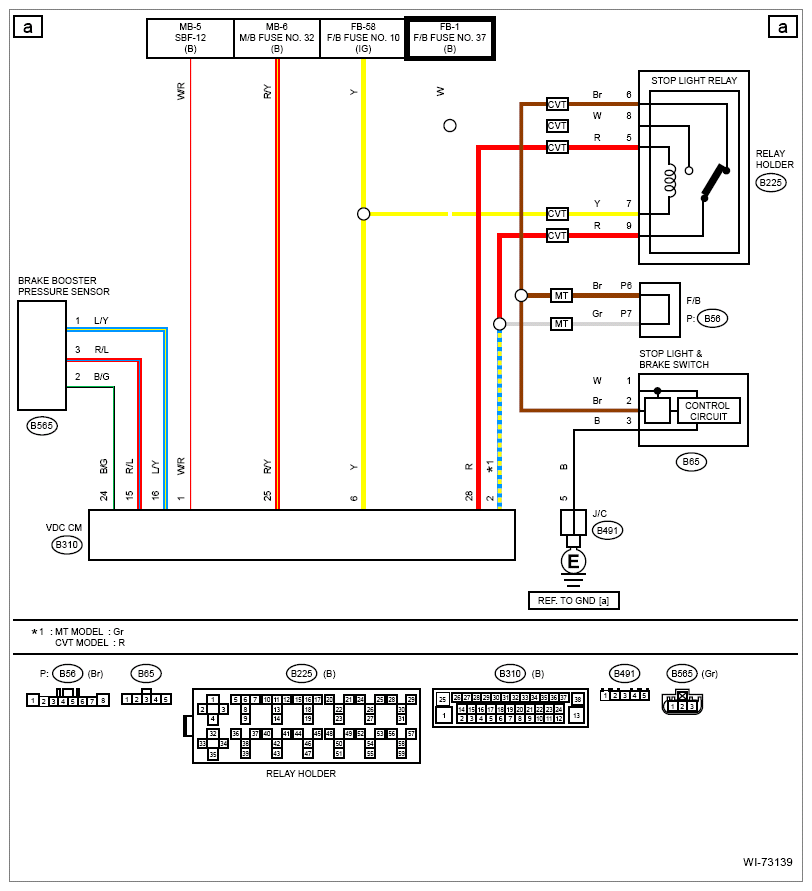

G12399849Courtesy of SUBARU OF AMERICA, INC.
G13614236Courtesy of SUBARU OF AMERICA, INC.
G13614237Courtesy of SUBARU OF AMERICA, INC.

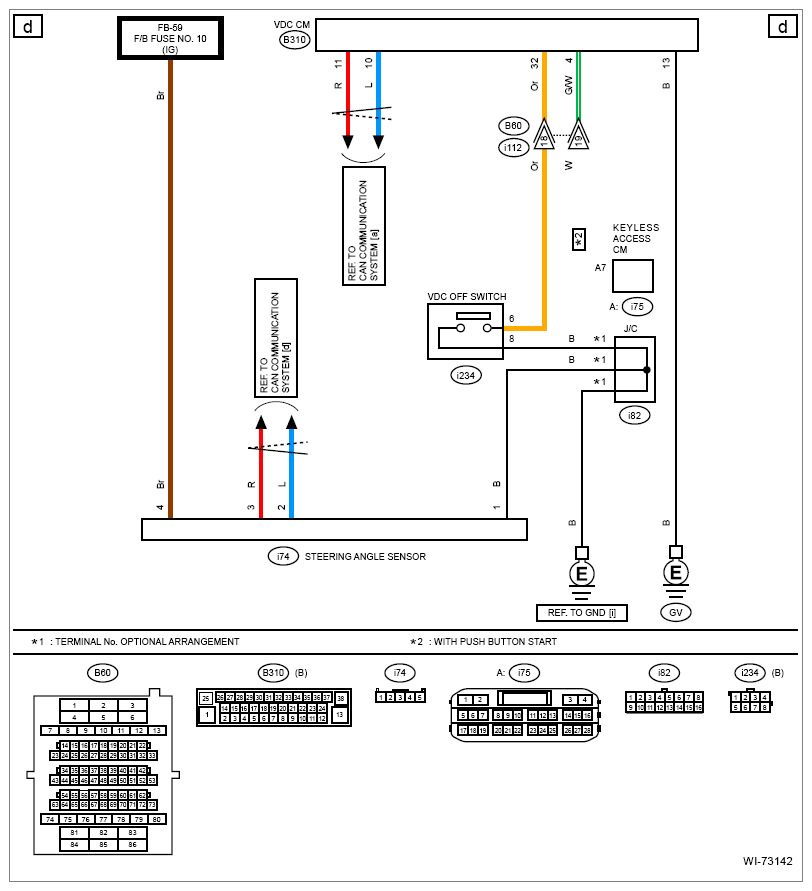

G12399852Courtesy of SUBARU OF AMERICA, INC.
