Turn Signal Light and Hazard Light System: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

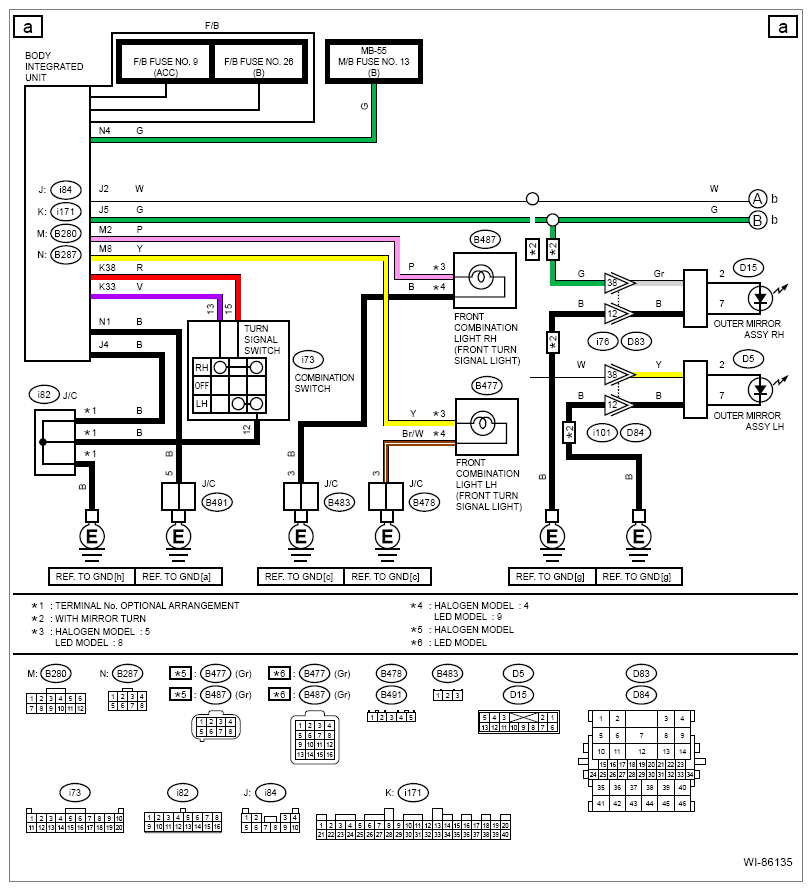

G13614231Courtesy of SUBARU OF AMERICA, INC.

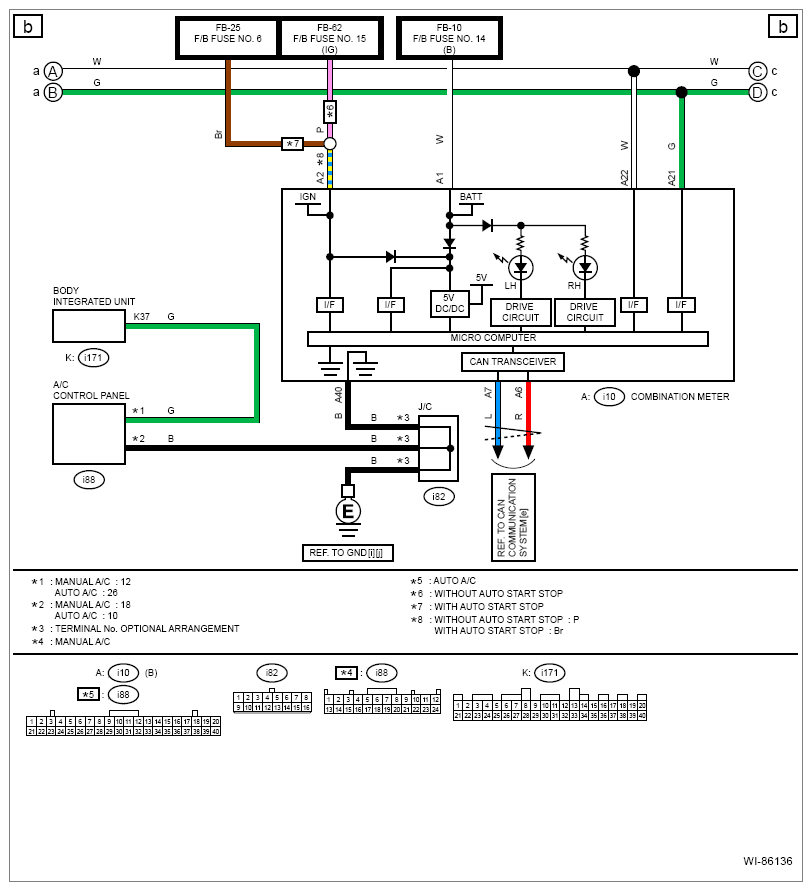

G13614232Courtesy of SUBARU OF AMERICA, INC.

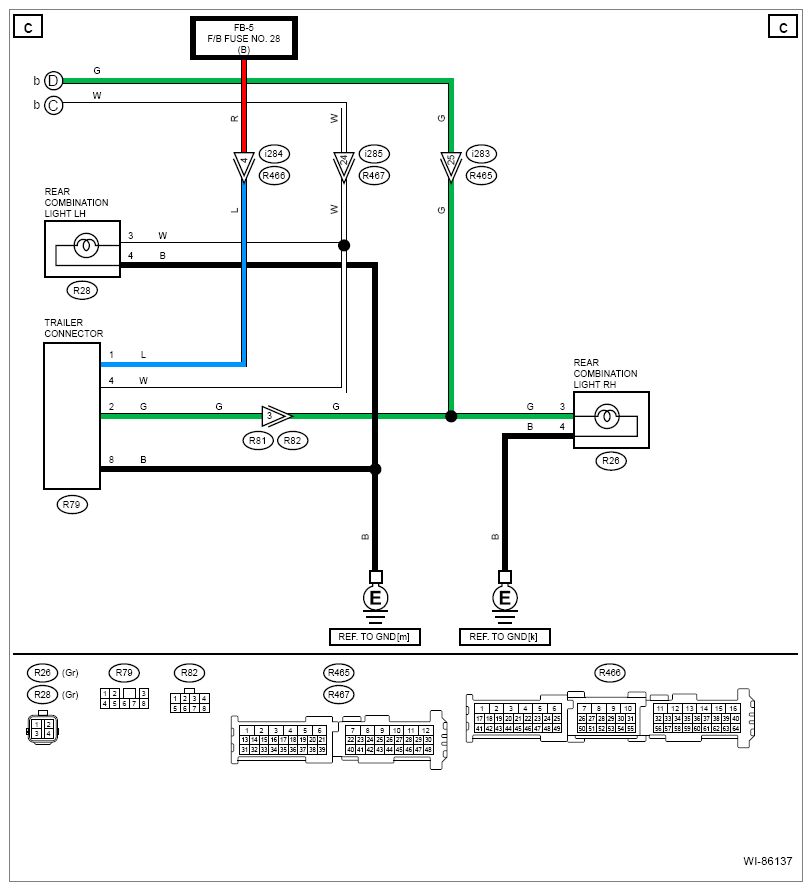

G13614233Courtesy of SUBARU OF AMERICA, INC.

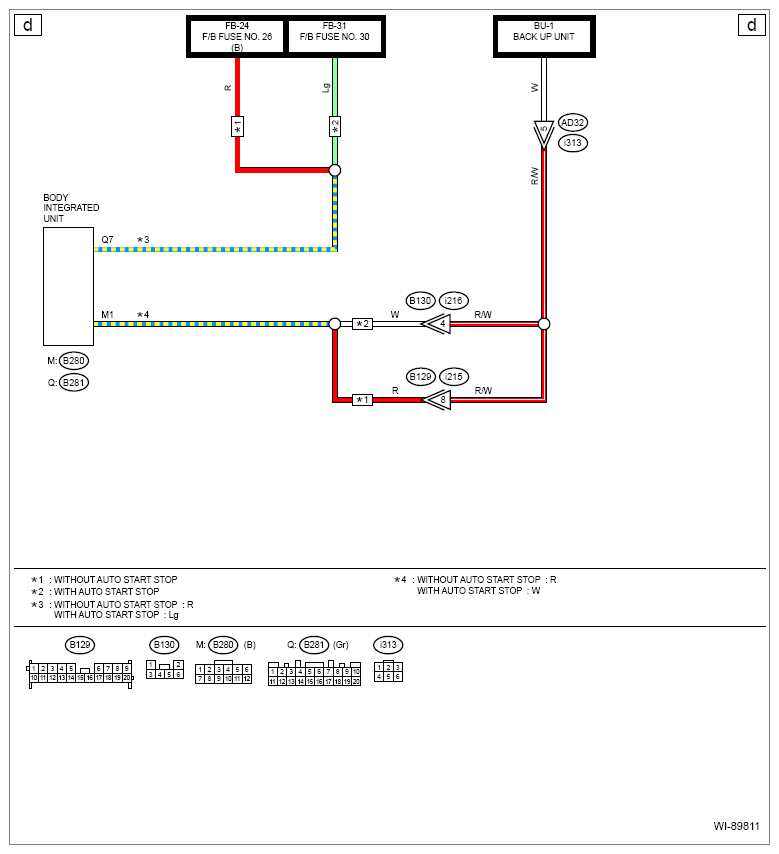

G13940554Courtesy of SUBARU OF AMERICA, INC.
