Without Audio Amplifier

WARNING: This page is about a different variant/trim than selected.

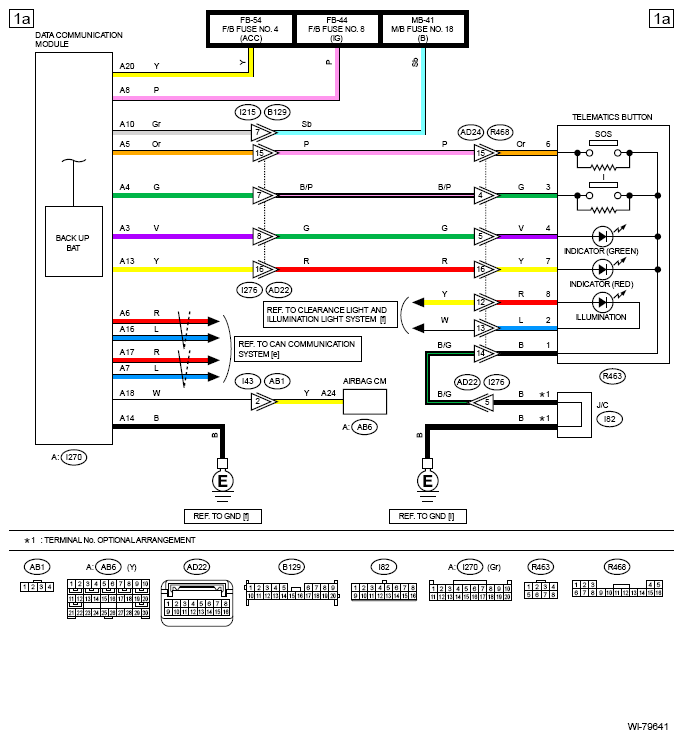

G13236369Courtesy of SUBARU OF AMERICA, INC.

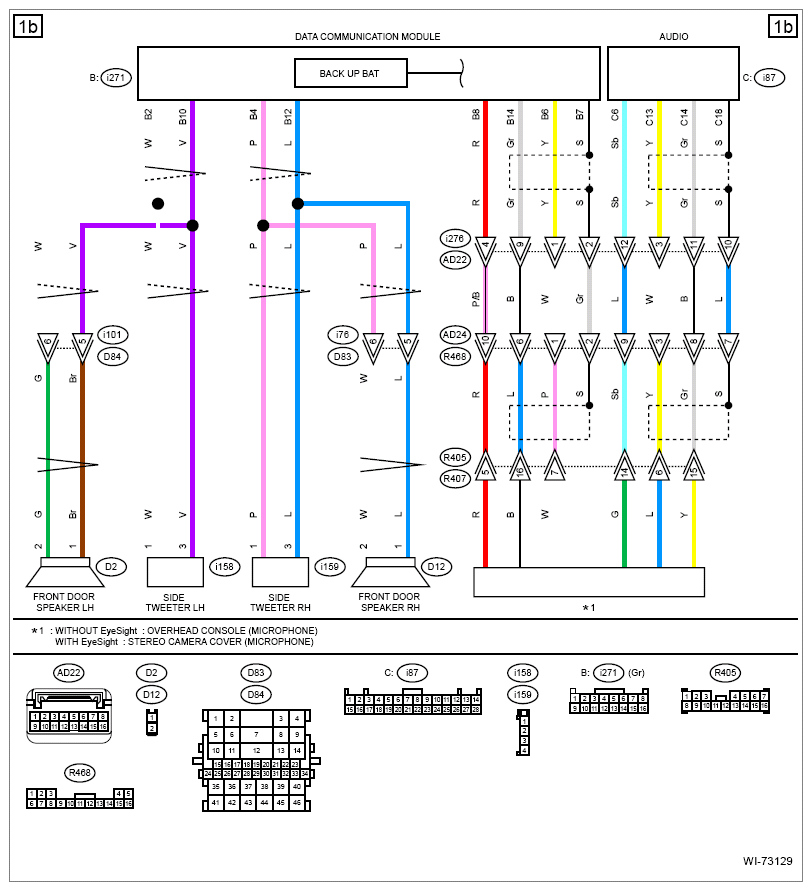

G12399839Courtesy of SUBARU OF AMERICA, INC.
G13236371Courtesy of SUBARU OF AMERICA, INC.
G13614224Courtesy of SUBARU OF AMERICA, INC.
