Shift Lock Control System: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.
G13614207Courtesy of SUBARU OF AMERICA, INC.

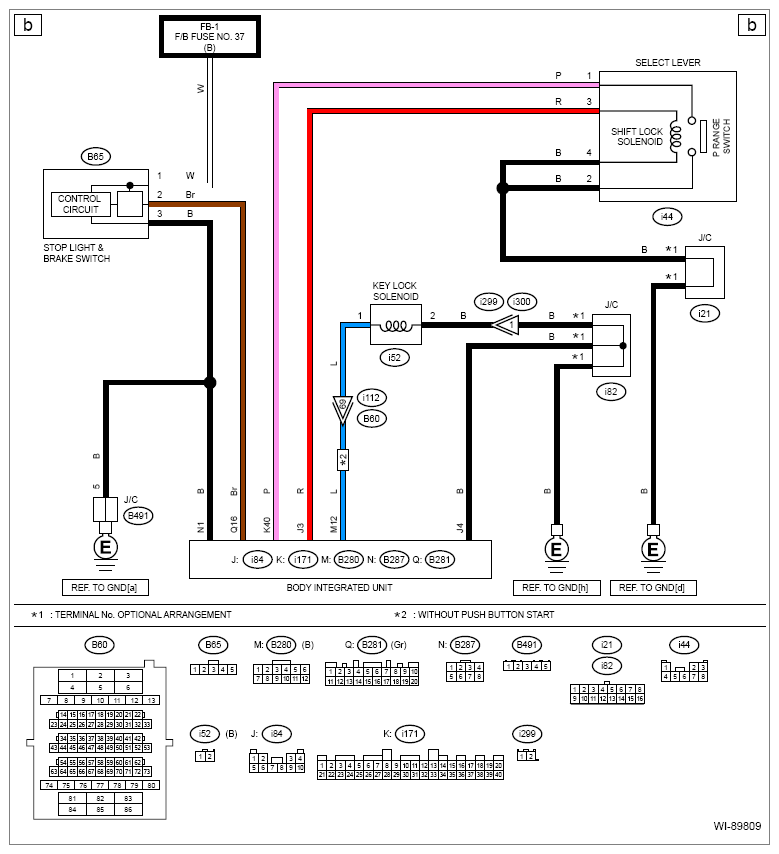

G13940528Courtesy of SUBARU OF AMERICA, INC.

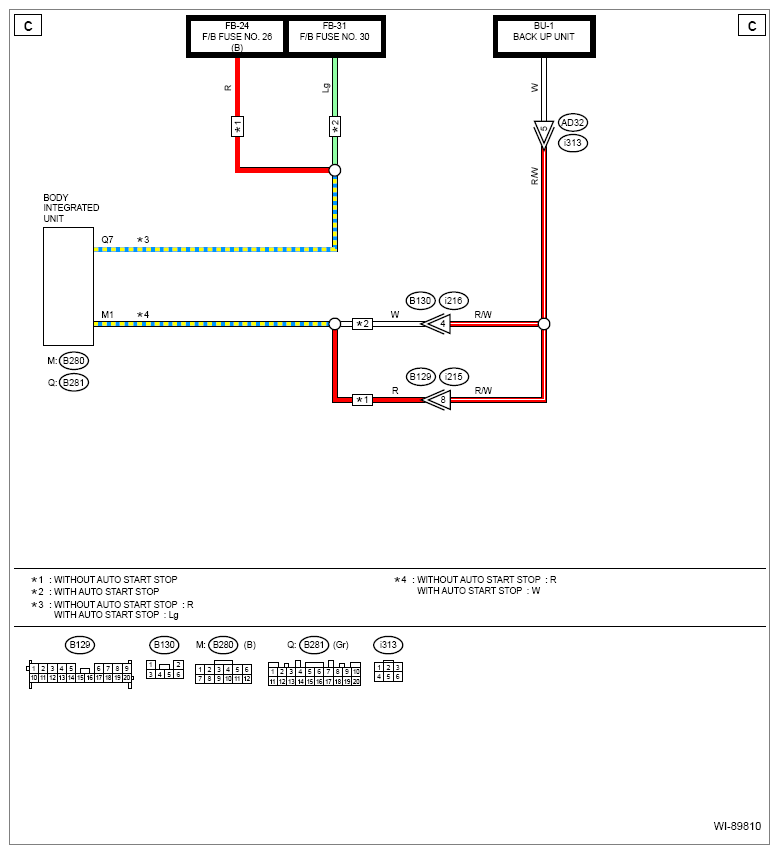

G13940529Courtesy of SUBARU OF AMERICA, INC.
